FF4269T0808S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -08 Male O-Ring Face Seal x -08 Male BSPP | Carbon Steel

FF4269T0808S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -08 Male O-Ring Face Seal x -08 Male BSPP | Carbon Steel

Name: FF4269T0808S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -08 Male O-Ring Face Seal x -08 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4269T0808S Danfoss
Price: 3.82 USD
Availability: InStock

$3.82 - $3.82

$3.82

$3.82 - $3.82

$3.82

Aeroquip® by Danfoss

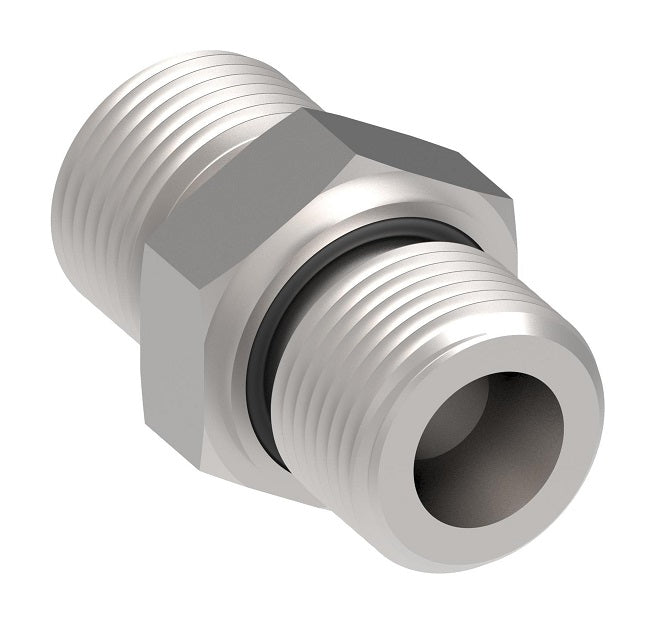

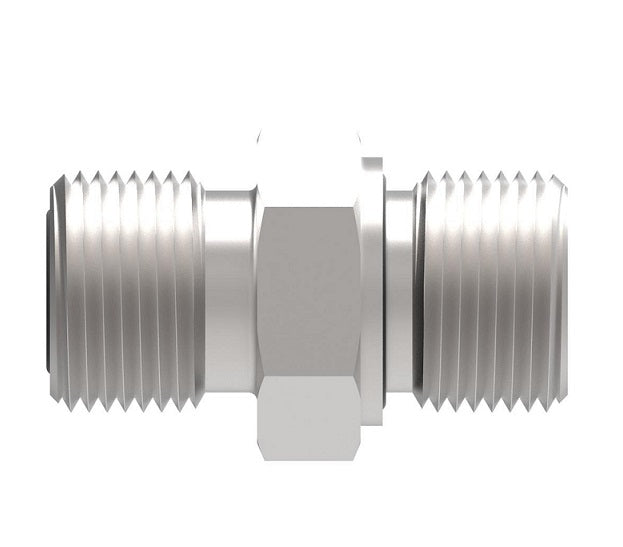

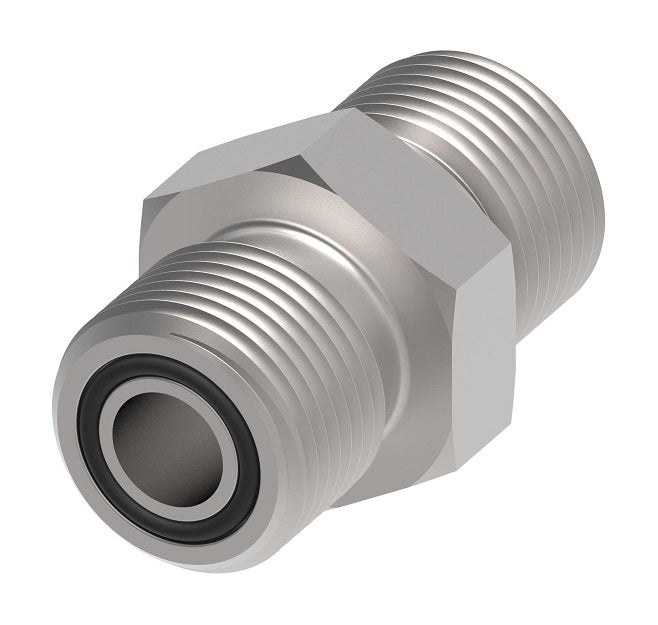

ORFS Male / BSP Male Captive Seal Adapter
Male O-Ring Face Seal x Male BSPP
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4269T0808S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/2in Male O-Ring Face Seal, 1/2in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. ISO 8434-3 / ISO 1179-2 L Type E


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4269T0404S	0.25"	9/16-18	G 1/4-19	1.22"
FF4269T0604S	0.38"	11/16-16	G 1/4-19	1.18"
FF4269T0606S	0.38"	11/16-16	G 3/8-19	1.26"
FF4269T0608S	0.38"	11/16-16	G 1/2-14	1.50"
FF4269T0808S	0.50"	13/16-16	G 1/2-14	1.50"
FF4269T1212S	0.75"	1-3/16-12	G 3/4-14	1.85"
FF4269T1616S	1.00"	1-7/16-12	G 1-11	1.93"
FF4269T2020S	1.25"	1-11/16-12	G 1-1/4-11	2.15"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
