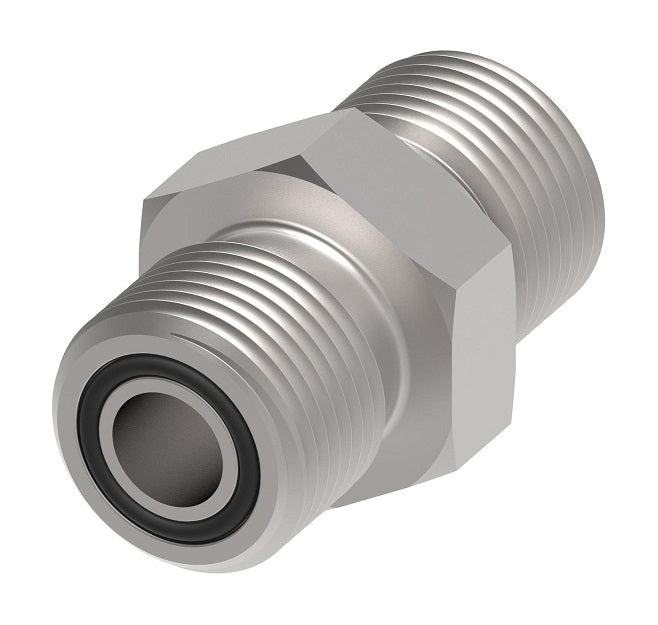

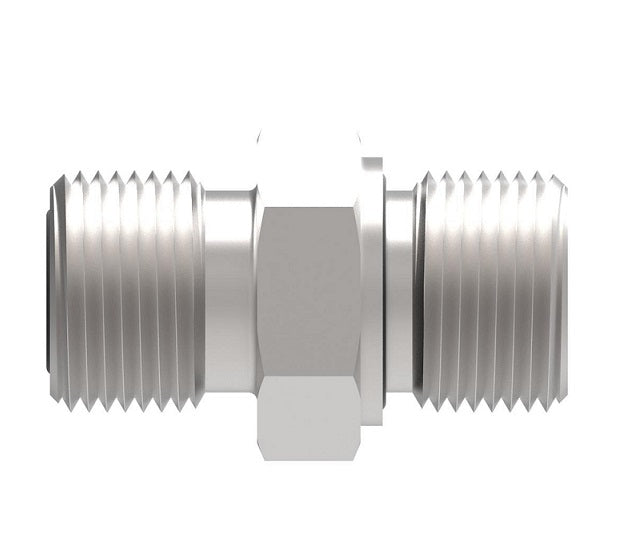

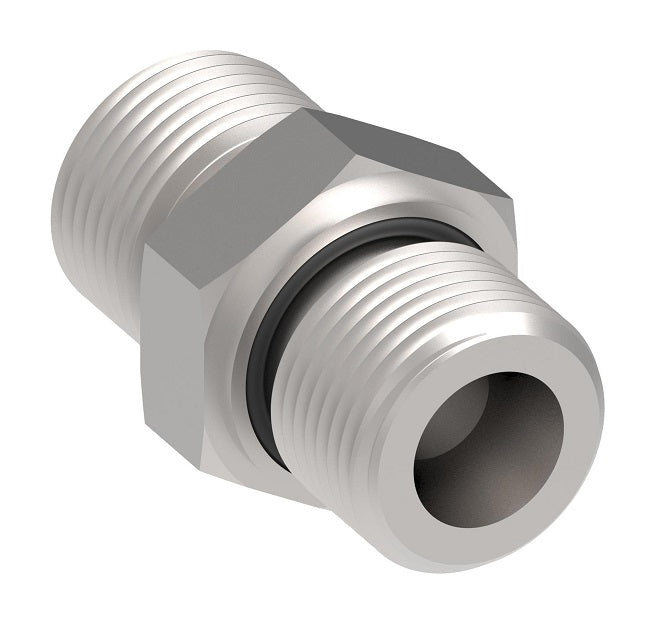

FF4269T2020S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -20 Male O-Ring Face Seal x -20 Male BSPP | Carbon Steel

FF4269T2020S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -20 Male O-Ring Face Seal x -20 Male BSPP | Carbon Steel

Name: FF4269T2020S Aeroquip by Danfoss | ORFS/ BSPP Male Captive Seal Adapter | -20 Male O-Ring Face Seal x -20 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4269T2020S Danfoss
Price: 11.16 USD
Availability: InStock

$11.16 - $11.16

$11.16

$11.16 - $11.16

$11.16

Aeroquip® by Danfoss
ORFS Male / BSP Male Captive Seal Adapter
Male O-Ring Face Seal x Male BSPP
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4269T2020S Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/4in Male O-Ring Face Seal, 1-1/4in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. ISO 8434-3 / ISO 1179-2 L Type E


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4269T0404S	0.25"	9/16-18	G 1/4-19	1.22"
FF4269T0604S	0.38"	11/16-16	G 1/4-19	1.18"
FF4269T0606S	0.38"	11/16-16	G 3/8-19	1.26"
FF4269T0608S	0.38"	11/16-16	G 1/2-14	1.50"
FF4269T0808S	0.50"	13/16-16	G 1/2-14	1.50"
FF4269T1212S	0.75"	1-3/16-12	G 3/4-14	1.85"
FF4269T1616S	1.00"	1-7/16-12	G 1-11	1.93"
FF4269T2020S	1.25"	1-11/16-12	G 1-1/4-11	2.15"
