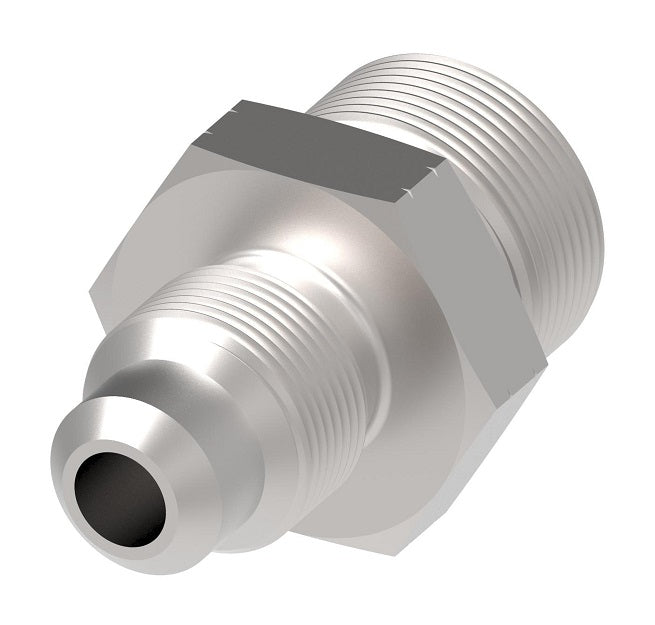

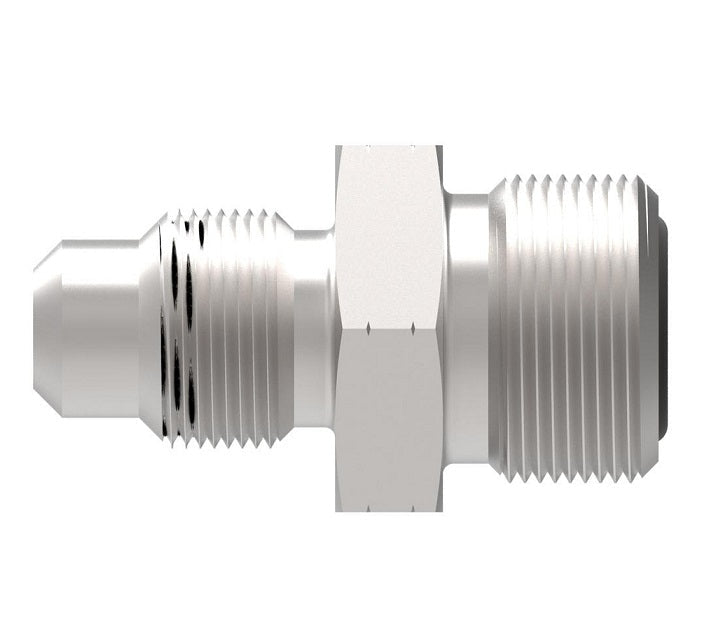

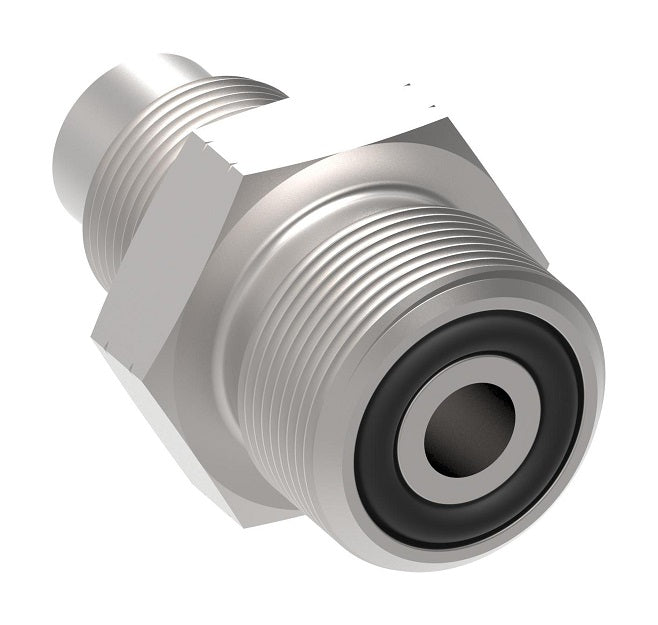

FF4272T1212S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -12 Male JIC x -12 Male O-Ring Face Seal | Carbon Steel
FF4272T1212S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -12 Male JIC x -12 Male O-Ring Face Seal | Carbon Steel
FF4272T1212S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -12 Male JIC x -12 Male O-Ring Face Seal | Carbon Steel
FF4272T1212S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -12 Male JIC x -12 Male O-Ring Face Seal | Carbon Steel

FF4272T1212S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -12 Male JIC x -12 Male O-Ring Face Seal | Carbon Steel

$8.53 - $8.53
$8.53
$8.53 - $8.53
$8.53

Aeroquip® by Danfoss
JIC 74° Cone/ORFS Male Adapter
Male 74° JIC x Male O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4272T1212S Danfoss
Brand: Aeroquip
Ends Configuration: 3/4in Male JIC, 3/4in Male O-Ring Face Seal
Material(s): Carbon Steel
Specifications:
  • Ref. ISO 8434-2 / ISO 8434-3
Steel
Part Number 		Tube OD Thread T1 Thread T2 A E Hex
FF4272T0404S 0.25" 7/16-20 9/16-18 1.16" 0.67
FF4272T0606S 0.38" 9/16-18 11/16-16 1.22" 0.75"
FF4272T0808S 0.50" 1/2-14 13/16-16 1.48" 0.87"
FF4272T1212S 0.75" 1-1/16-12 1-3/16-12 1.97" 1.26"
FF4272T1616S 1.00" 1-5/16-12 1-7/16-12 2.03" 1.50"
FF4272T2020S 1.25" 1-5/8-12 1-11/16-20 2.13" 1.81"
FF4272T2424S 1.50" 1-7/8-12 2-12 2.36" 2.17"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
