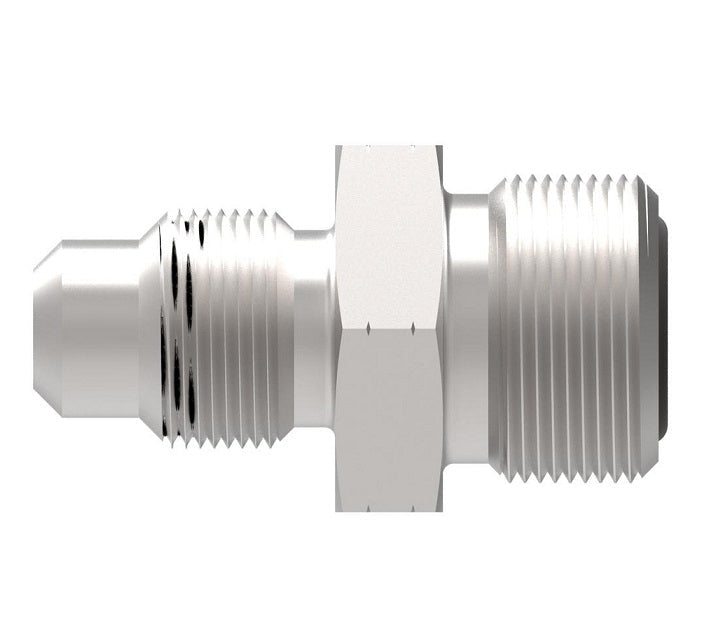

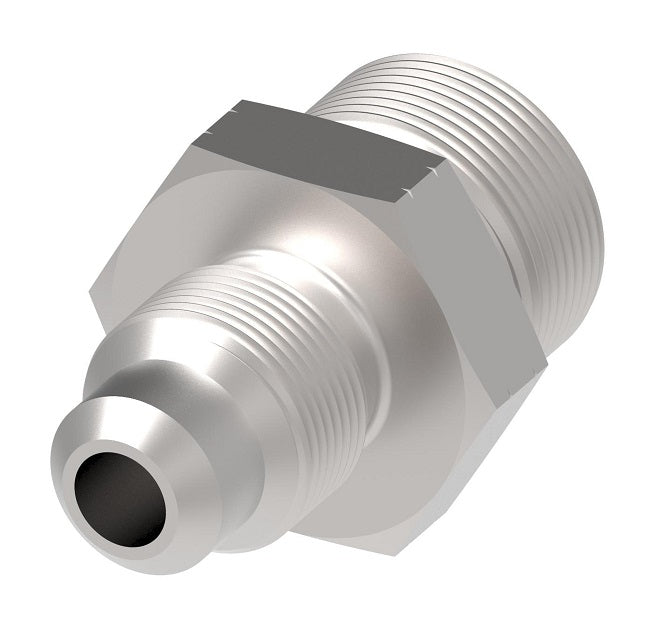

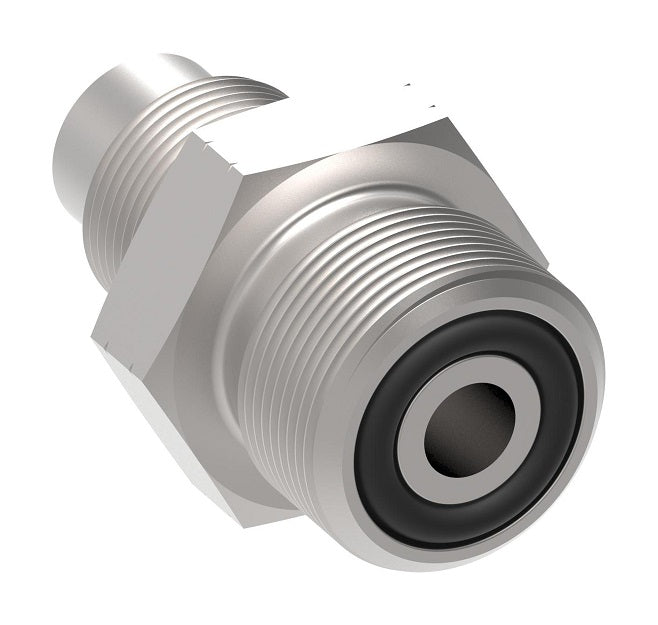

FF4272T2020S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -20 Male JIC x -20 Male O-Ring Face Seal | Carbon Steel

FF4272T2020S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -20 Male JIC x -20 Male O-Ring Face Seal | Carbon Steel

Name: FF4272T2020S Aeroquip by Danfoss | JIC/ORFS Male Adapter | -20 Male JIC x -20 Male O-Ring Face Seal | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4272T2020S Danfoss
Price: 7.3 USD
Availability: InStock

$7.30 - $7.30

$7.30

$7.30 - $7.30

$7.30

Aeroquip® by Danfoss
JIC 74° Cone/ORFS Male Adapter
Male 74° JIC x Male O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4272T2020S Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/4in Male JIC, 1-1/4in Male O-Ring Face Seal
Material(s):	Carbon Steel

Specifications:
Ref. ISO 8434-2 / ISO 8434-3


Steel Part Number	Tube OD	Thread T1	Thread T2	A	E Hex
FF4272T0404S	0.25"	7/16-20	9/16-18	1.16"	0.67
FF4272T0606S	0.38"	9/16-18	11/16-16	1.22"	0.75"
FF4272T0808S	0.50"	1/2-14	13/16-16	1.48"	0.87"
FF4272T1212S	0.75"	1-1/16-12	1-3/16-12	1.97"	1.26"
FF4272T1616S	1.00"	1-5/16-12	1-7/16-12	2.03"	1.50"
FF4272T2020S	1.25"	1-5/8-12	1-11/16-20	2.13"	1.81"
FF4272T2424S	1.50"	1-7/8-12	2-12	2.36"	2.17"
