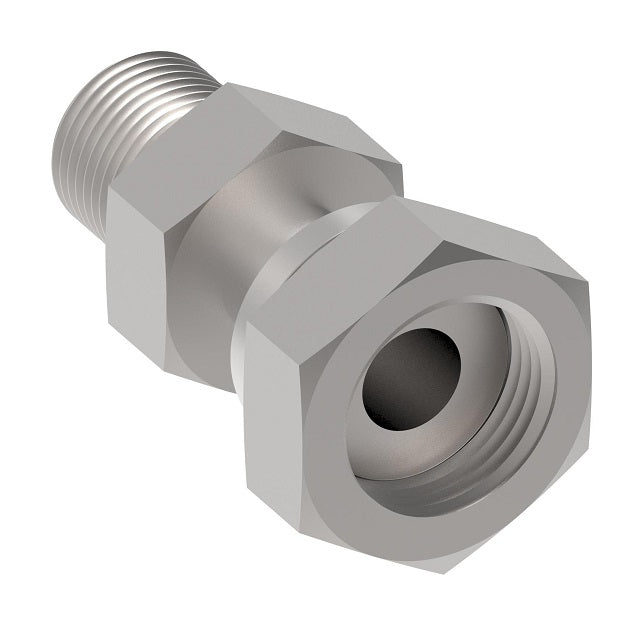

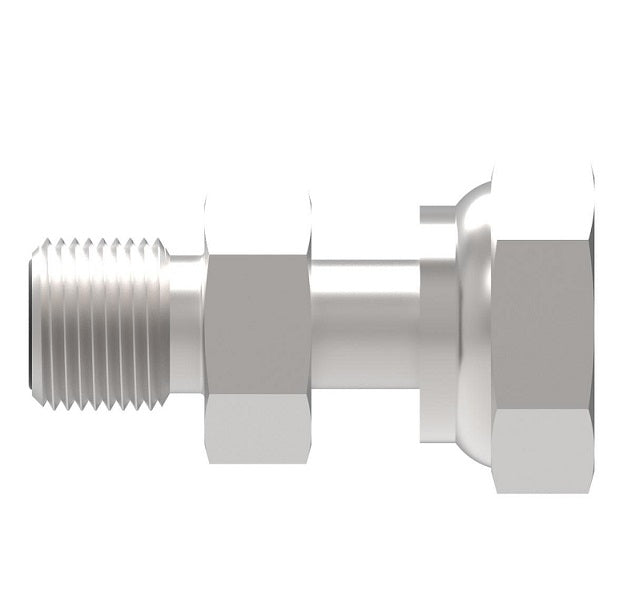

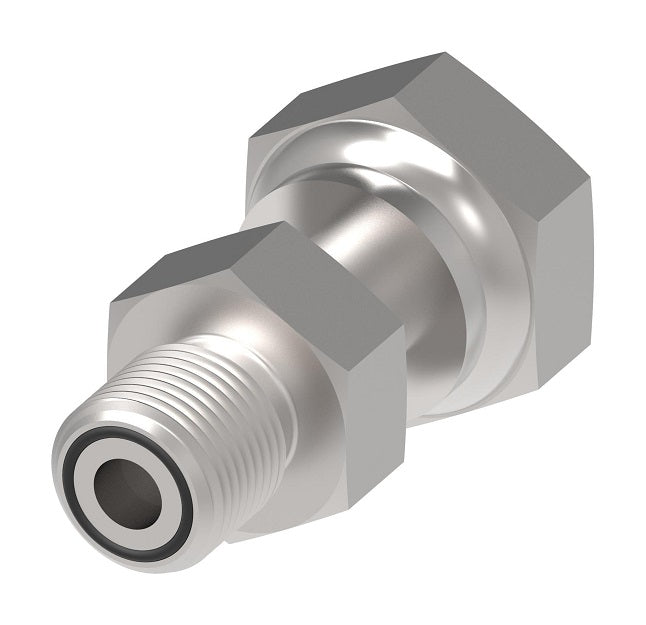

FF4278T0606S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal Swivel | Carbon Steel

FF4278T0606S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal Swivel | Carbon Steel

Name: FF4278T0606S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -06 Male O-Ring Face Seal x -06 Female O-Ring Face Seal Swivel | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4278T0606S Danfoss
Price: 4.64 USD
Availability: InStock

$4.64 - $4.64

$4.64

$4.64 - $4.64

$4.64

Aeroquip® by Danfoss
ORS Male/ORS Female Swivel Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal Swivel
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4278T0606S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Female O-Ring Face Seal
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel

Specifications:
Ref. ISO 8434-3


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF4278T0404S	0.25"	9/16-18	9/16-18	1.30"	0.39"
FF4278T0606S	0.38"	11/16-16	11/16-16	1.52"	0.43"
FF4278T0808S	0.50"	13/16-16	13/16-16	1.69"	0.51"
FF4278T1212S	0.75"	1-3/16-12	1-3/16-12	2.20"	0.67"
FF4278T1616S	1.00"	1-7/16-12	1-7/16-12	2.36"	0.69"
FF4278T2020S	1.25"	1-11/16-12	1-11/16-12	2.44"	0.69"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
