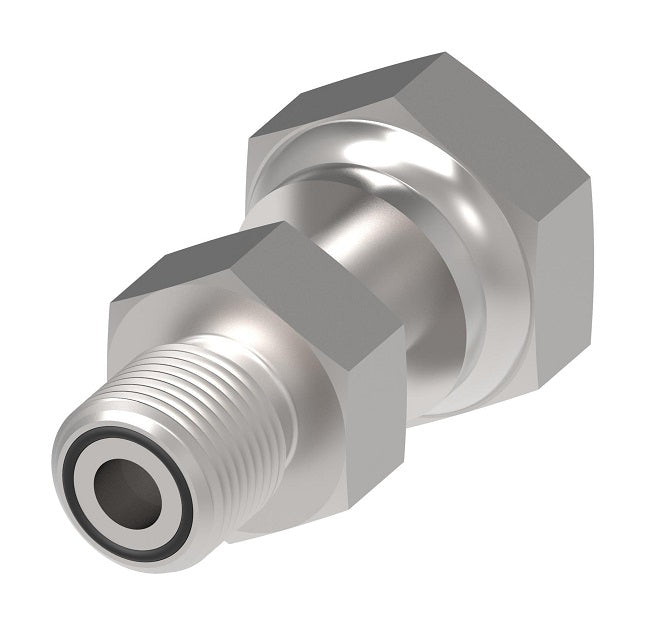

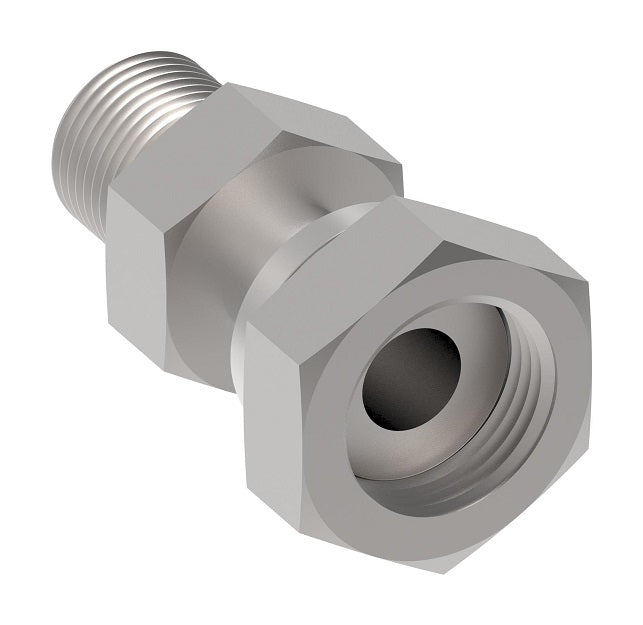

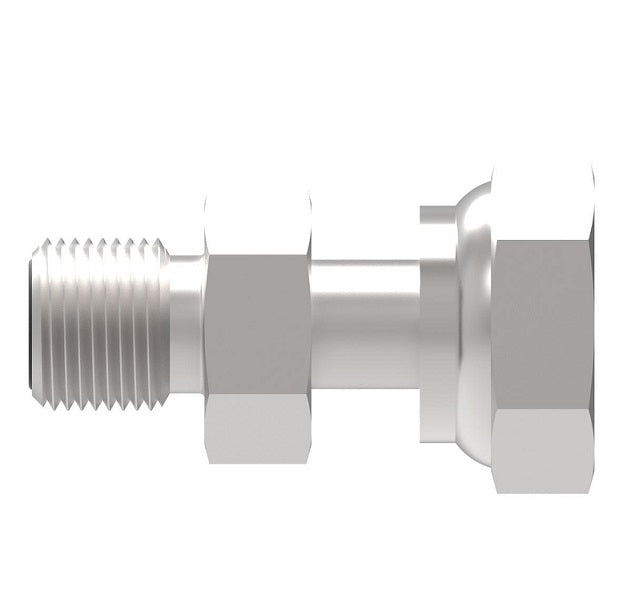

FF4278T0808S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal Swivel | Carbon Steel

FF4278T0808S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal Swivel | Carbon Steel

Name: FF4278T0808S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal Swivel | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4278T0808S Danfoss
Price: 5.84 USD
Availability: InStock

$5.84 - $5.84

$5.84

$5.84 - $5.84

$5.84

Aeroquip® by Danfoss
ORS Male/ORS Female Swivel Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal Swivel
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4278T0808S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/2in Male O-Ring Face Seal, 1/2in Female O-Ring Face Seal
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel

Specifications:
Ref. ISO 8434-3


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF4278T0404S	0.25"	9/16-18	9/16-18	1.30"	0.39"
FF4278T0606S	0.38"	11/16-16	11/16-16	1.52"	0.43"
FF4278T0808S	0.50"	13/16-16	13/16-16	1.69"	0.51"
FF4278T1212S	0.75"	1-3/16-12	1-3/16-12	2.20"	0.67"
FF4278T1616S	1.00"	1-7/16-12	1-7/16-12	2.36"	0.69"
FF4278T2020S	1.25"	1-11/16-12	1-11/16-12	2.44"	0.69"
