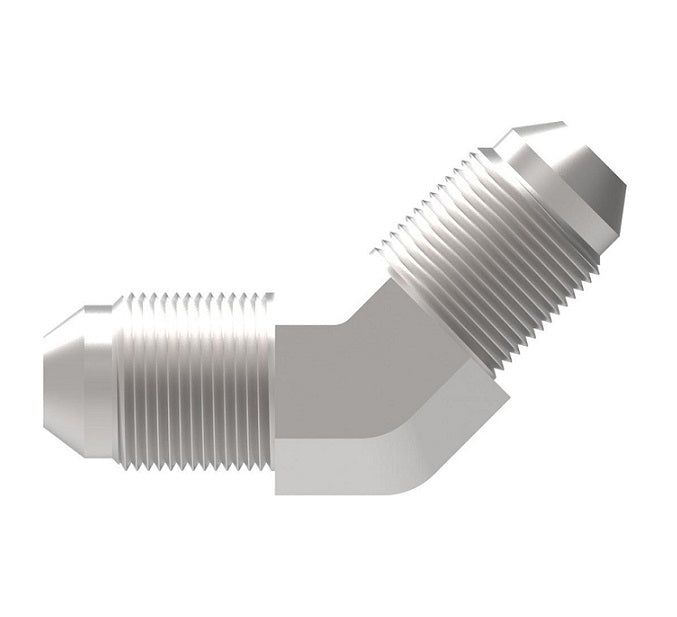

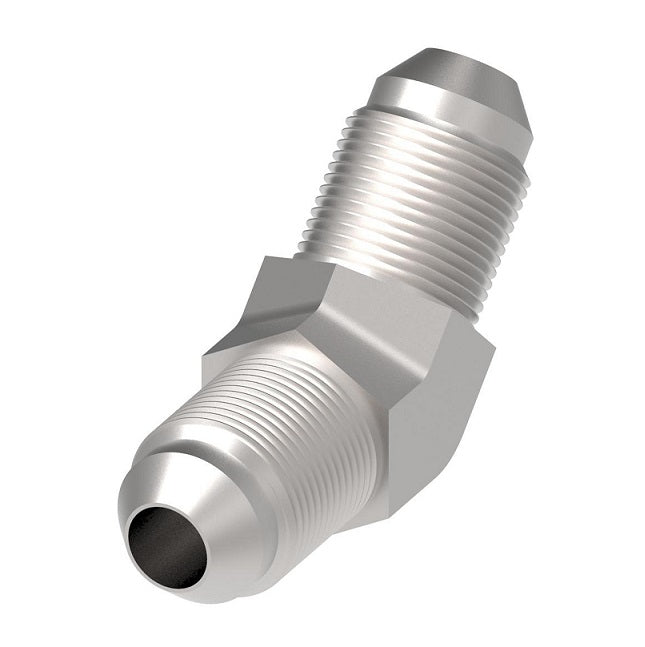

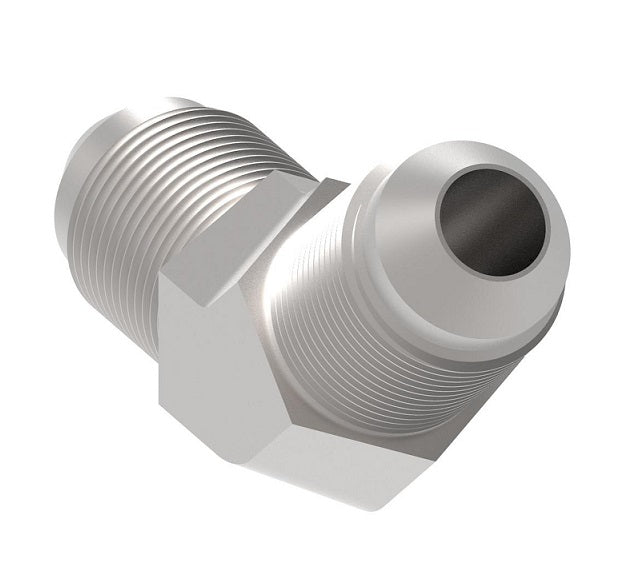

FF4308-0808S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -08 Male 37° JIC x -08 Male 37° JIC | Carbon Steel

FF4308-0808S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -08 Male 37° JIC x -08 Male 37° JIC | Carbon Steel

Name: FF4308-0808S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -08 Male 37° JIC x -08 Male 37° JIC | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4308-0808S Danfoss
Price: 4.4 USD
Availability: InStock

$4.40 - $4.40

$4.40

$4.40 - $4.40

$4.40

Aeroquip® by Danfoss
37° JIC/37° JIC Adapter
Male 37° JIC x Male 37° JIC
45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4308-0808S Danfoss
Brand:	Aeroquip
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Male JIC, 1/2in Male JIC, Some Ends Match
Material(s):	Carbon Steel

Specifications:
Ref. Performance per ISO 8434-2


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF4308-0404S	0.25"	7/16-20	7/16-20	0.85"	0.85"
FF4308-0606S	0.38"	9/16-18	9/16-18	0.90"	0.90"
FF4308-0808S	0.50"	1/2-14	1/2-14	1.06"	1.06"
FF4308-1212S	0.75"	1-1/16-12	1-1/16-12	1.40"	1.40"
FF4308-1616S	1.00"	1-5/16-12	1-5/16-12	1.52"	1.52"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
