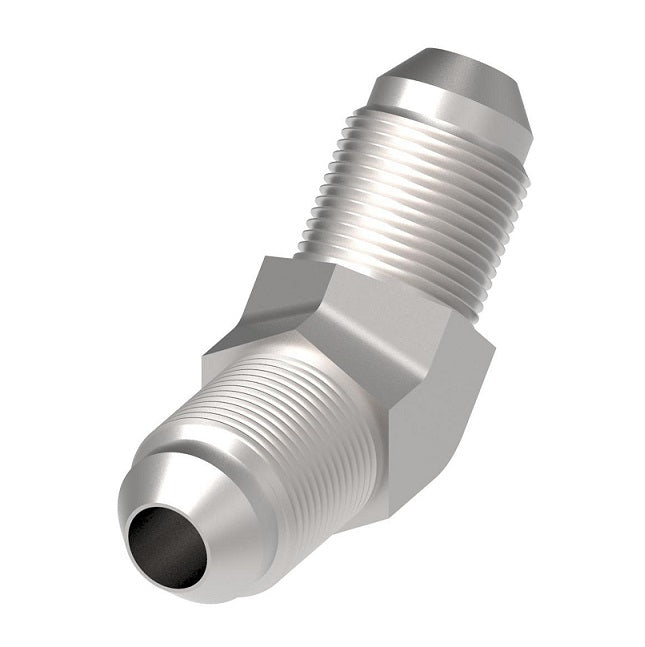

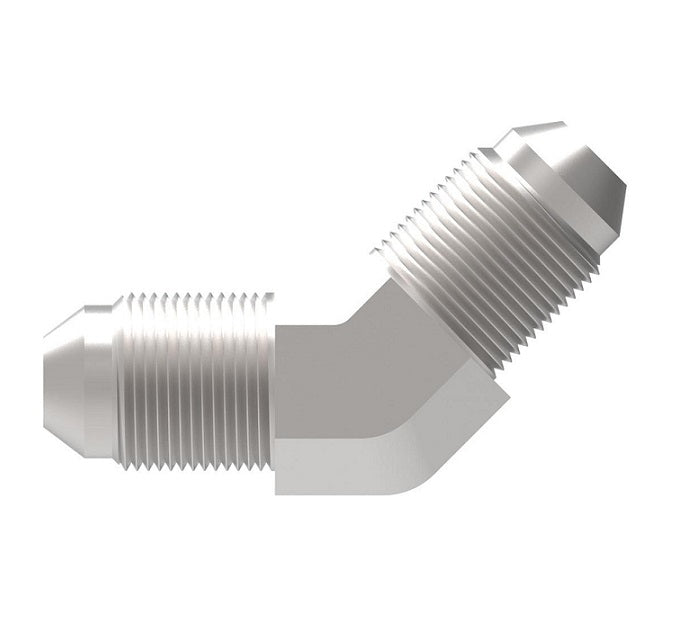

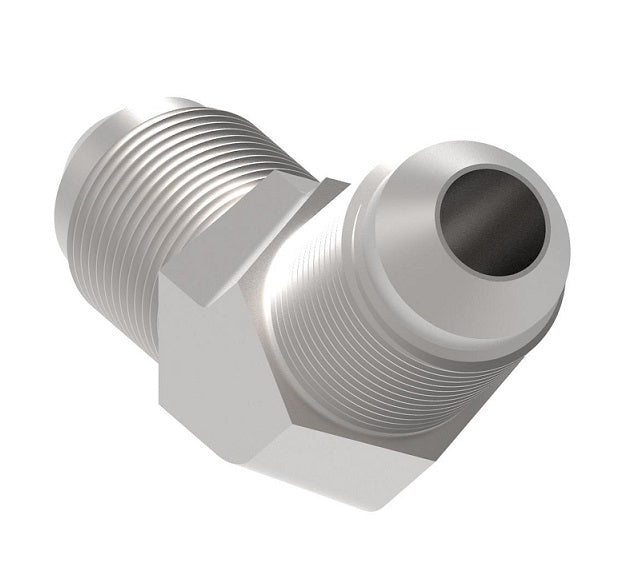

FF4308-1616S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -16 Male 37° JIC x -16 Male 37° JIC | Carbon Steel
FF4308-1616S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -16 Male 37° JIC x -16 Male 37° JIC | Carbon Steel
FF4308-1616S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -16 Male 37° JIC x -16 Male 37° JIC | Carbon Steel
FF4308-1616S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -16 Male 37° JIC x -16 Male 37° JIC | Carbon Steel

FF4308-1616S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -16 Male 37° JIC x -16 Male 37° JIC | Carbon Steel

$8.68 - $8.68
$8.68
$8.68 - $8.68
$8.68

Aeroquip® by Danfoss
37° JIC/37° JIC Adapter
Male 37° JIC x Male 37° JIC
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4308-1616S Danfoss
Brand: Aeroquip
Shape (Orientation): 45 Degree
Ends Configuration: 1in Male JIC, 1in Male JIC, Some Ends Match
Material(s): Carbon Steel
Specifications:
  • Ref. Performance per ISO 8434-2
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF4308-0404S 0.25" 7/16-20 7/16-20 0.85" 0.85"
FF4308-0606S 0.38" 9/16-18 9/16-18 0.90" 0.90"
FF4308-0808S 0.50" 1/2-14 1/2-14 1.06" 1.06"
FF4308-1212S 0.75" 1-1/16-12 1-1/16-12 1.40" 1.40"
FF4308-1616S 1.00" 1-5/16-12 1-5/16-12 1.52" 1.52"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
