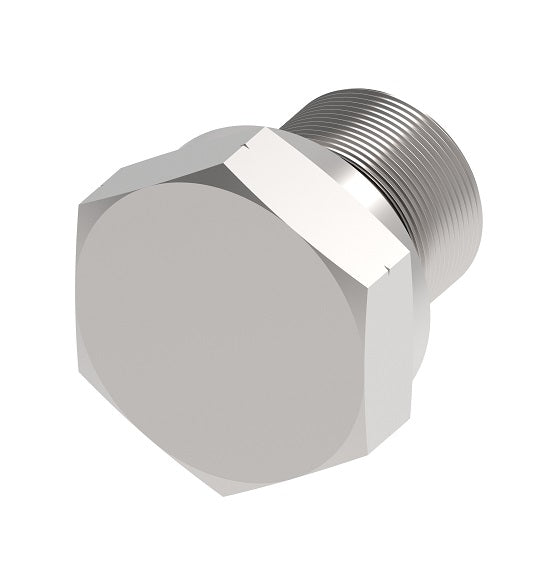

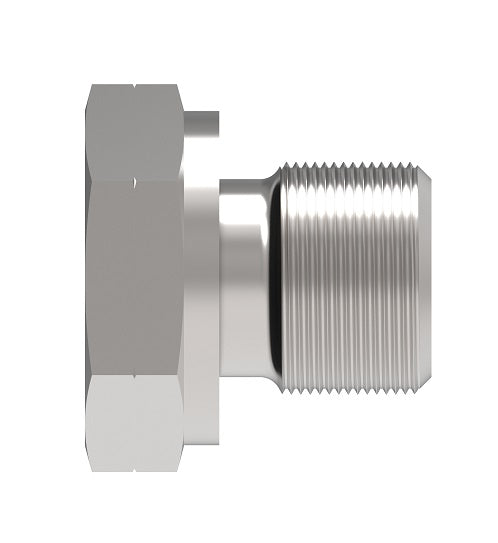

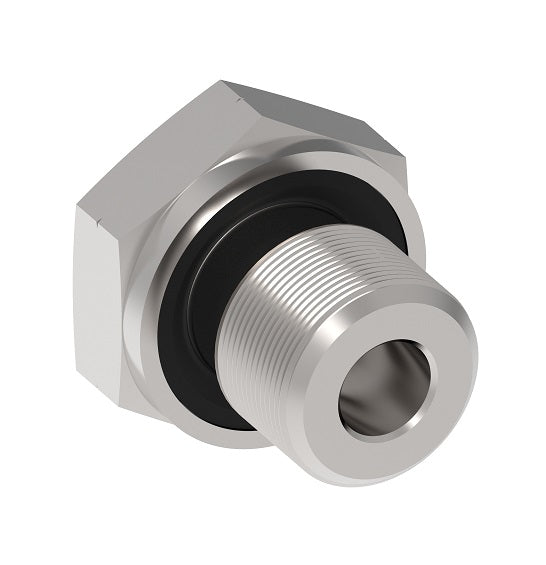

FF91573-08S Aeroquip by Danfoss | BSPP Captive Seal Plug | -08 Male BSPP | Carbon Steel

FF91573-08S Aeroquip by Danfoss | BSPP Captive Seal Plug | -08 Male BSPP | Carbon Steel

Name: FF91573-08S Aeroquip by Danfoss | BSPP Captive Seal Plug | -08 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF91573-08S Danfoss
Price: 1.44 USD
Availability: InStock

$1.44 - $1.44

$1.44

$1.44 - $1.44

$1.44

Aeroquip® by Danfoss
BSPP Captive Seal Plug

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF91573-08S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/2in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. ISO 1179-2 L Type E


Steel Part Number	Tube OD	Thread T	A	Hex E
FF91573-04S	0.25"	G 1/4-19	0.77"	0.75"
FF91573-06S	0.38"	G 3/8-19	0.89"	0.87"
FF91573-08S	0.50"	G 1/2-14	0.98"	1.06"
FF91573-12S	0.75"	G 3/4-14	1.14"	1.26"
FF91573-16S	1.00"	G 1-11	1.38"	1.61"
FF91573-20S	1.25"	G 1-1/4-11	1.46"	1.97"
FF91573-24S	1.50"	G 1-1/2-11	1.57"	2.17"
