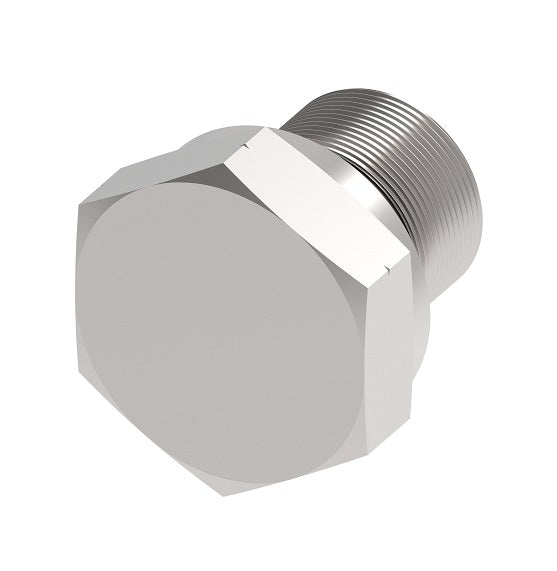

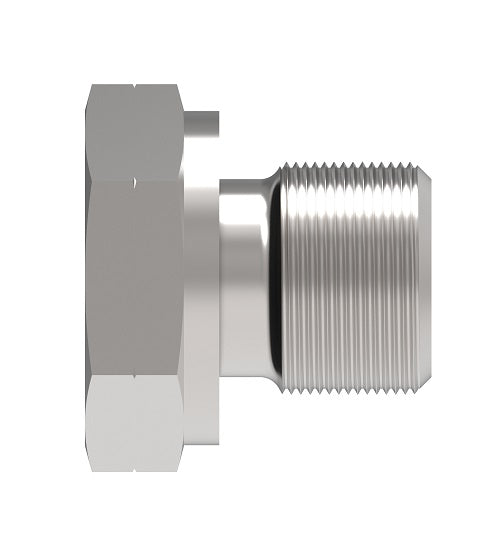

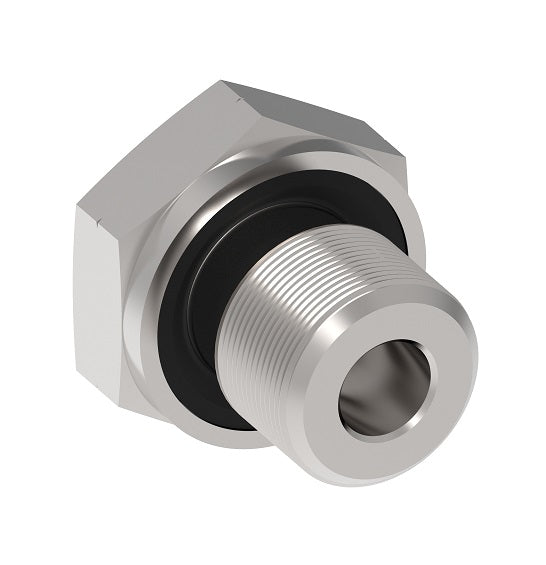

FF91573-20S Aeroquip by Danfoss | BSPP Captive Seal Plug | -20 Male BSPP | Carbon Steel

FF91573-20S Aeroquip by Danfoss | BSPP Captive Seal Plug | -20 Male BSPP | Carbon Steel

Name: FF91573-20S Aeroquip by Danfoss | BSPP Captive Seal Plug | -20 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF91573-20S Danfoss
Price: 8.16 USD
Availability: InStock

$8.16 - $8.16

$8.16

$8.16 - $8.16

$8.16

Aeroquip® by Danfoss
BSPP Captive Seal Plug

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF91573-20S Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/4in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. ISO 1179-2 L Type E


Steel Part Number	Tube OD	Thread T	A	Hex E
FF91573-04S	0.25"	G 1/4-19	0.77"	0.75"
FF91573-06S	0.38"	G 3/8-19	0.89"	0.87"
FF91573-08S	0.50"	G 1/2-14	0.98"	1.06"
FF91573-12S	0.75"	G 3/4-14	1.14"	1.26"
FF91573-16S	1.00"	G 1-11	1.38"	1.61"
FF91573-20S	1.25"	G 1-1/4-11	1.46"	1.97"
FF91573-24S	1.50"	G 1-1/2-11	1.57"	2.17"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
