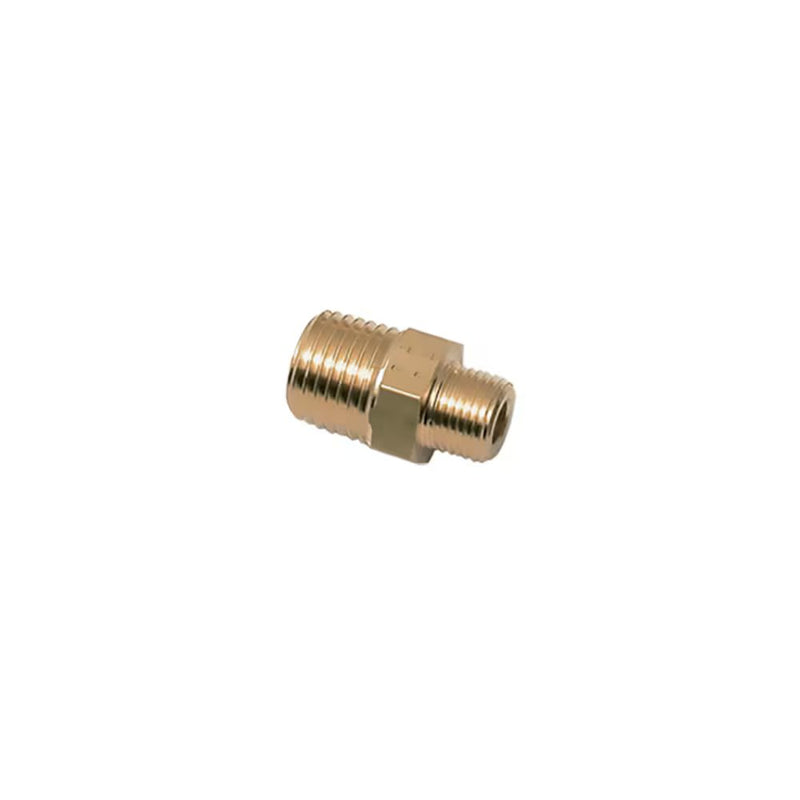

0121 21 21 by Parker | Legris Equal Adapter | 1/2" Male BSPT Thread | 22 mm Hex | 36 mm Length | Straight | Brass | Pack of 10

Save $50.89

$127.23

$127.23 - $127.23

$127.23

$76.34

$76.34 - $76.34

$76.34

by Parker Hannifin
Brass Adapters:0121 Equal/Unequal Straight Male Adaptor, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0121 21 21 Parker \| 10 \|
Series:	0121 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	F	L	Kg
0121 10 10	1/8"	1/8"	11 mm	19 mm	.009 Kg
0121 13 10	1/4"	1/8"	14 mm	23.5 mm	.017 Kg
0121 13 13	1/4"	1/4"	14 mm	27 mm	.020 Kg
0121 17 10	3/8"	1/8"	17 mm	24 mm	.021 Kg
0121 17 13	3/8"	1/4"	17 mm	27.5 mm	.026 Kg
0121 17 17	3/8"	3/8"	17 mm	28 mm	.026 Kg
0121 21 10	1/2"	1/8"	22 mm	28.5 mm	.041 Kg
0121 21 13	1/2"	1/4"	22 mm	32 mm	.045 Kg
0121 21 17	1/2"	3/8"	22 mm	32.5 mm	.045 Kg
0121 21 21	1/2"	1/2"	22 mm	36 mm	.052 Kg
0121 27 13	3/4"	1/4"	27 mm	35 mm	.078 Kg
0121 27 17	3/4"	3/8"	27 mm	35.5 mm	.077 Kg
0121 27 21	3/4"	1/2"	27 mm	39 mm	.084 Kg
0121 27 27	3/4"	3/4"	27 mm	40 mm	.090 Kg
0121 34 27	1"	3/4"	36 mm	43 mm	.144 Kg
0121 34 34	1"	1"	36 mm	46 mm	.152 Kg
0121 42 21	1-1/4"	1/2"	46 mm	46.5 mm	.219 Kg
0121 42 27	1-1/4"	3/4"	46 mm	47.5 mm	.229 Kg
0121 42 34	1-1/4"	1"	46 mm	50.5 mm	.234 Kg
0121 42 42	1-1/4"	1-1/4"	46 mm	53 mm	.230 Kg
