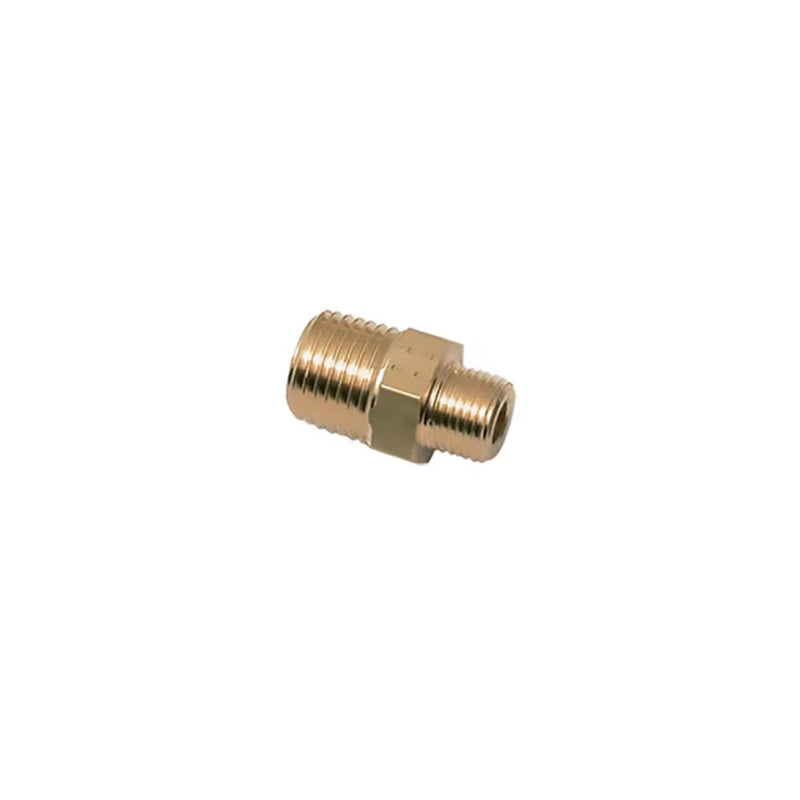

0121 42 34 by Parker | Legris Unequal Adapter | 1-1/4" Male BSPT Thread x 1" Male BSPT Thread | 46 mm Hex | 50.5 mm Length | Straight | Brass

Save $4.85

$53.31

$53.31 - $53.31

$53.31

$48.46

$48.46 - $48.46

$48.46

by Parker Hannifin
Brass Adapters:0121 Equal/Unequal Straight Male Adaptor, Male BSPT Thread

Quantity

Specifications for Variant SKU: 0121 42 34 Parker
Series:	0121 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	F	L	Kg
0121 10 10	1/8"	1/8"	11 mm	19 mm	.009 Kg
0121 13 10	1/4"	1/8"	14 mm	23.5 mm	.017 Kg
0121 13 13	1/4"	1/4"	14 mm	27 mm	.020 Kg
0121 17 10	3/8"	1/8"	17 mm	24 mm	.021 Kg
0121 17 13	3/8"	1/4"	17 mm	27.5 mm	.026 Kg
0121 17 17	3/8"	3/8"	17 mm	28 mm	.026 Kg
0121 21 10	1/2"	1/8"	22 mm	28.5 mm	.041 Kg
0121 21 13	1/2"	1/4"	22 mm	32 mm	.045 Kg
0121 21 17	1/2"	3/8"	22 mm	32.5 mm	.045 Kg
0121 21 21	1/2"	1/2"	22 mm	36 mm	.052 Kg
0121 27 13	3/4"	1/4"	27 mm	35 mm	.078 Kg
0121 27 17	3/4"	3/8"	27 mm	35.5 mm	.077 Kg
0121 27 21	3/4"	1/2"	27 mm	39 mm	.084 Kg
0121 27 27	3/4"	3/4"	27 mm	40 mm	.090 Kg
0121 34 27	1"	3/4"	36 mm	43 mm	.144 Kg
0121 34 34	1"	1"	36 mm	46 mm	.152 Kg
0121 42 21	1-1/4"	1/2"	46 mm	46.5 mm	.219 Kg
0121 42 27	1-1/4"	3/4"	46 mm	47.5 mm	.229 Kg
0121 42 34	1-1/4"	1"	46 mm	50.5 mm	.234 Kg
0121 42 42	1-1/4"	1-1/4"	46 mm	53 mm	.230 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
