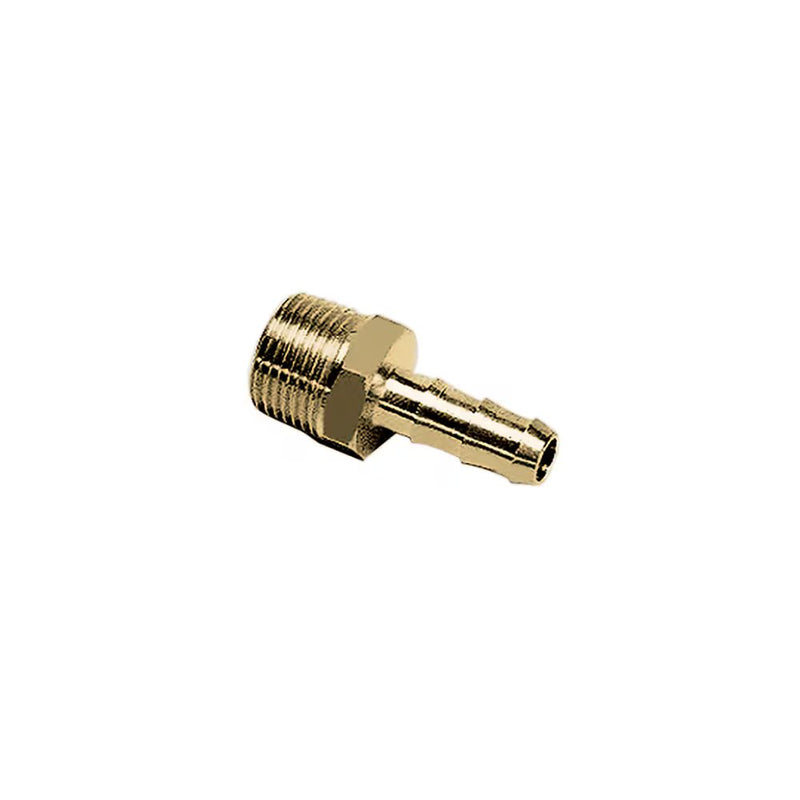

0123 16 21 by Parker | Legris Hose Barb Fitting | 16 mm Barb x R1/2" Male BSPT Thread | 22 mm Hex | 59 mm Length | Straight | Brass

0123 16 21 by Parker | Legris Hose Barb Fitting | 16 mm Barb x R1/2" Male BSPT Thread | 22 mm Hex | 59 mm Length | Straight | Brass | Pack of 10

Save $12.66 Save $12.66
$139.23
$139.23 - $139.23
$139.23
$126.57
$126.57 - $126.57
$126.57

by Parker Hannifin
Brass Adapters:0123 Tailpiece Adaptor for Rubber Hose, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0123 16 21 Parker | 10 |
Series: 0123 Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number ØD ØD1 C F L L1 ØT Kg
0123 04 10 4 mm 6 mm 1/8" 10 mm 34 mm 22.5 mm 3.3 mm .008 Kg
0123 06 10 6 mm 8 mm 1/8" 10 mm 34 mm 22.5 mm 5 mm .009 Kg
0123 07 10 7 mm 9 mm 1/8" 10 mm 34 mm 22.5 mm 3 mm .009 Kg
0123 07 13 7 mm 9 mm 1/4" 14 mm 38.5 mm 22.5 mm 6 mm .018 Kg
0123 07 17 7 mm 9 mm 3/8" 17 mm 39 mm 22.5 mm 6 mm .024 Kg
0123 10 10 10 mm 12.2 mm 1/8" 13 mm 34 mm 22.5 mm 5 mm .014 Kg
0123 10 13 10 mm 12.2 mm 1/4" 14 mm 38.5 mm 22.5 mm 7 mm .020 Kg
0123 10 17 10 mm 12.2 mm 3/8" 17 mm 39 mm 22.5 mm 9.5 mm .023 Kg
0123 12 17 12 mm 14 mm 3/8" 17 mm 46 mm 29.5 mm 11 mm .026 Kg
0123 13 13 13 mm 15 mm 1/4" 17 mm 45.5 mm 29.5 mm 7 mm .027 Kg
0123 13 17 13 mm 15 mm 3/8" 17 mm 46 mm 29.5 mm 11 mm ..26 Kg
0123 13 21 13 mm 15 mm 1/2" 22 mm 50.5 mm 29.5 mm 12 mm .045 Kg
0123 16 17 16 mm 18.5 mm 3/8" 19 mm 54.5 mm 38 mm 11 mm .039 Kg
0123 16 21 16 mm 18.5 mm 1/2" 22 mm 59 mm 38 mm 14 mm .053 Kg
0123 16 27 16 mm 18.5 mm 3/4" 27 mm 62 mm 38 mm 15 mm .084 Kg
0123 19 17 19 mm 21.5 mm 3/8" 22 mm 54.5 mm 38 mm 11 mm .047 Kg
0123 19 21 19 mm 21.5 mm 1/2" 22 mm 59 mm 38 mm 14 mm .057 Kg
0123 19 27 19 mm 21.5 mm 3/4" 27 mm 62 mm 38 mm 18 mm .083 Kg
0123 25 27 25 mm 26.7 mm 3/4" 27 mm 62 mm 38 mm 18 mm .078 Kg
0123 25 34 25 mm 27 mm 1" 36 mm 65 mm 38 mm 24 mm .124 Kg
0123 32 34 32 mm 34.5 mm 1" 36 mm 70 mm 43 mm 24 mm .124 Kg
