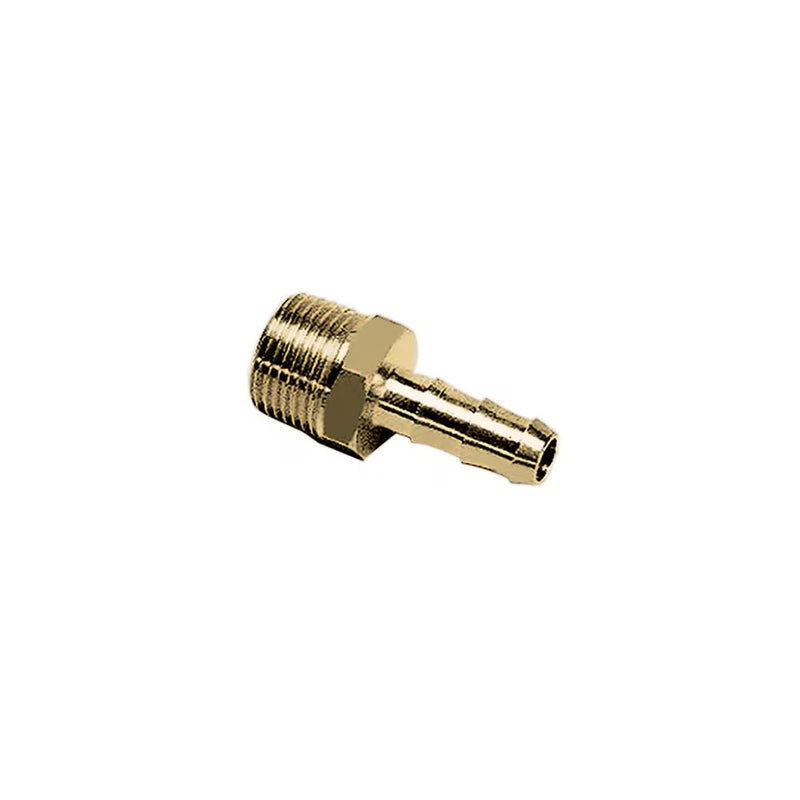

0123 32 34 by Parker | Legris Hose Barb Fitting | 32 mm Barb x R1" Male BSPT Thread | 36 mm Hex | 70 mm Length | Straight | Brass | Pack of 5

Save $109.63

$274.08

$274.08 - $274.08

$274.08

$164.45

$164.45 - $164.45

$164.45

by Parker Hannifin
Brass Adapters:0123 Tailpiece Adaptor for Rubber Hose, Male BSPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0123 32 34 Parker \| 5 \|
Series:	0123 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	ØD	ØD1	C	F	L	L1	ØT	Kg
0123 04 10	4 mm	6 mm	1/8"	10 mm	34 mm	22.5 mm	3.3 mm	.008 Kg
0123 06 10	6 mm	8 mm	1/8"	10 mm	34 mm	22.5 mm	5 mm	.009 Kg
0123 07 10	7 mm	9 mm	1/8"	10 mm	34 mm	22.5 mm	3 mm	.009 Kg
0123 07 13	7 mm	9 mm	1/4"	14 mm	38.5 mm	22.5 mm	6 mm	.018 Kg
0123 07 17	7 mm	9 mm	3/8"	17 mm	39 mm	22.5 mm	6 mm	.024 Kg
0123 10 10	10 mm	12.2 mm	1/8"	13 mm	34 mm	22.5 mm	5 mm	.014 Kg
0123 10 13	10 mm	12.2 mm	1/4"	14 mm	38.5 mm	22.5 mm	7 mm	.020 Kg
0123 10 17	10 mm	12.2 mm	3/8"	17 mm	39 mm	22.5 mm	9.5 mm	.023 Kg
0123 12 17	12 mm	14 mm	3/8"	17 mm	46 mm	29.5 mm	11 mm	.026 Kg
0123 13 13	13 mm	15 mm	1/4"	17 mm	45.5 mm	29.5 mm	7 mm	.027 Kg
0123 13 17	13 mm	15 mm	3/8"	17 mm	46 mm	29.5 mm	11 mm	..26 Kg
0123 13 21	13 mm	15 mm	1/2"	22 mm	50.5 mm	29.5 mm	12 mm	.045 Kg
0123 16 17	16 mm	18.5 mm	3/8"	19 mm	54.5 mm	38 mm	11 mm	.039 Kg
0123 16 21	16 mm	18.5 mm	1/2"	22 mm	59 mm	38 mm	14 mm	.053 Kg
0123 16 27	16 mm	18.5 mm	3/4"	27 mm	62 mm	38 mm	15 mm	.084 Kg
0123 19 17	19 mm	21.5 mm	3/8"	22 mm	54.5 mm	38 mm	11 mm	.047 Kg
0123 19 21	19 mm	21.5 mm	1/2"	22 mm	59 mm	38 mm	14 mm	.057 Kg
0123 19 27	19 mm	21.5 mm	3/4"	27 mm	62 mm	38 mm	18 mm	.083 Kg
0123 25 27	25 mm	26.7 mm	3/4"	27 mm	62 mm	38 mm	18 mm	.078 Kg
0123 25 34	25 mm	27 mm	1"	36 mm	65 mm	38 mm	24 mm	.124 Kg
0123 32 34	32 mm	34.5 mm	1"	36 mm	70 mm	43 mm	24 mm	.124 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
