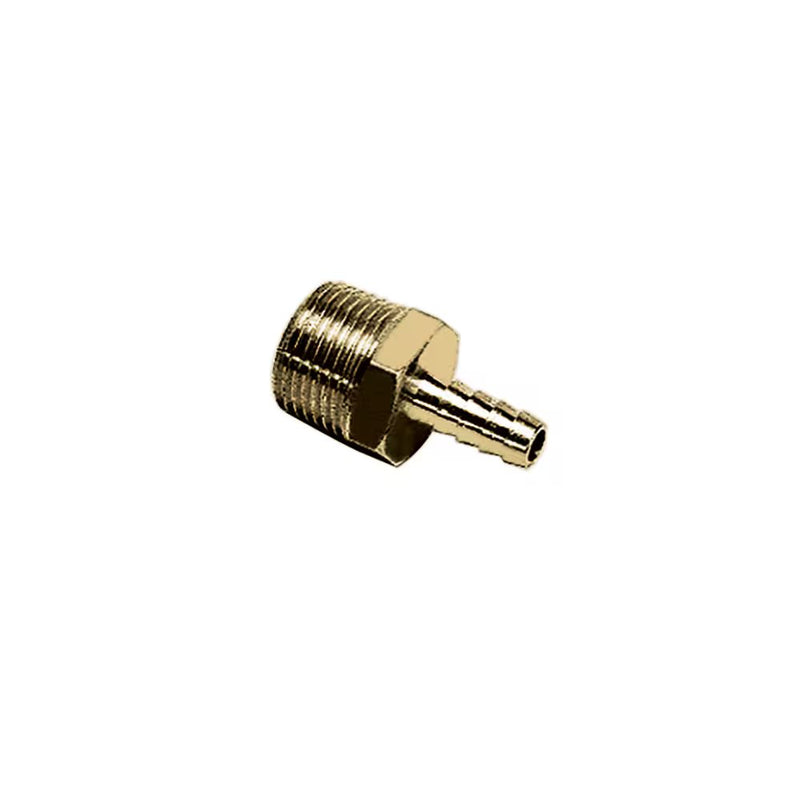

0136 06 17 by Parker | Legris Hose Barb Fittings | 6 mm Barb x R 3/8" Male BSPT Thread | 17 mm Hex | 31.5 mm Length | Straight | Brass | Pack of 10

0136 06 17 by Parker | Legris Hose Barb Fittings | 6 mm Barb x R 3/8" Male BSPT Thread | 17 mm Hex | 31.5 mm Length | Straight | Brass | Pack of 10

Save $83.79 Save $83.79
$209.48
$209.48 - $209.48
$209.48
$125.69
$125.69 - $125.69
$125.69

by Parker Hannifin
Brass Adapters:0136 Tailpiece Adaptor for Flexible Tubing, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0136 06 17 Parker | 10 |
Series: 0136 Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number ØD ØD1 ØD2 C E L L1 ØT Kg
0136 06 10 6 mm 4 mm 4.3 mm 1/8" 10 mm 26.5 mm 15 mm 2 mm .006 Kg
0136 06 13 6 mm 4 mm 4.3 mm 1/4" 14 mm 31 mm 15 mm 2 mm .015 Kg
0136 06 17 6 mm 4 mm 4.3 mm 3/8" 17 mm 31.5 mm 15 mm 2 mm .020 Kg
0136 08 10 8 mm 6 mm 6.4 mm 1/8" 10 mm 26.5 mm 15 mm 4 mm .007 Kg
0136 08 13 8 mm 6 mm 6.4 mm 1/4" 14 mm 31 mm 15 mm 4 mm .015 Kg
0136 08 17 8 mm 6 mm 6.4 mm 3/8" 17 mm 31.5 mm 15 mm 4 mm .020 Kg
0136 10 13 10 mm 8 mm 8.4 mm 1/8" 10 mm 26 mm 15 mm 2 mm .006 Kg
0136 10 17 10 mm 8 mm 8.4 mm 3/8" 17 mm 31.5 mm 15 mm 6 mm .020 Kg
0136 10 21 10 mm 8 mm 8.4 mm 1/2" 22 mm 36 mm 15 mm 6 mm .039 Kg
0136 12 13 12 mm 10 mm 10.7 mm 1/4" 14 mm 36 mm 20 mm 7 mm .018 Kg
0136 12 17 12 mm 10 mm 10.7 mm 3/8" 17 mm 36.5 mm 20 mm 8 mm .022 Kg
0136 12 21 12 mm 10 mm 10.7 mm 1/2" 22 mm 41 mm 20 mm 8 mm .040 Kg
0136 14 17 14 mm 12 mm 12.7 mm 3/8" 17 mm 36.5 mm 20 mm 10 mm .023 Kg
0136 14 21 14 mm 12 mm 12.7 mm 1/2" 22 mm 41 mm 20 mm 10 mm .041 Kg
0136 14 27 14 mm 12 mm 12.7 mm 3/4" 27 mm 44 mm 20 mm 10 mm .072 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
