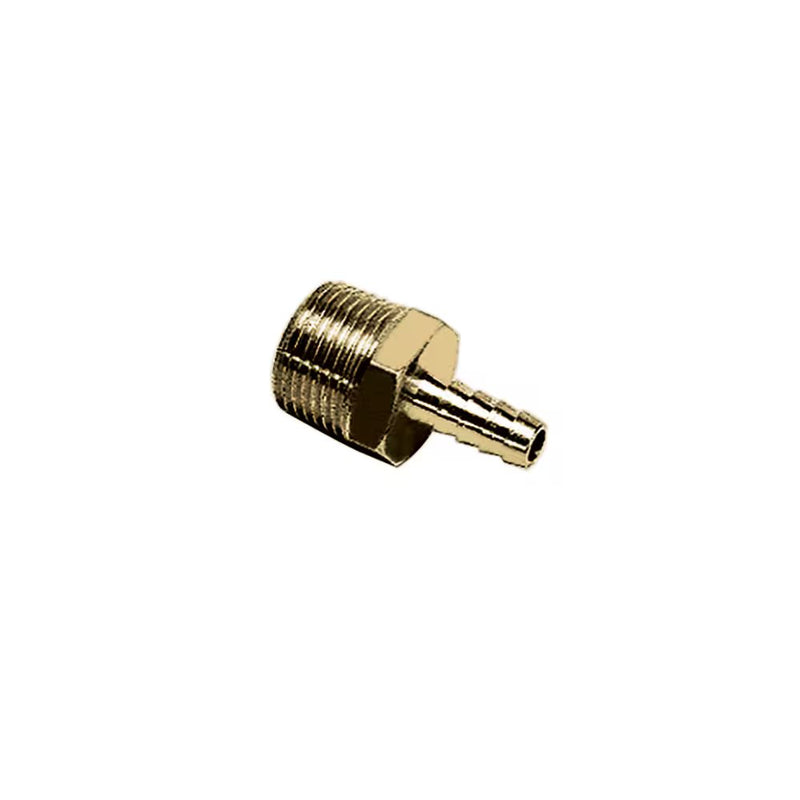

0136 14 17 by Parker | Legris Hose Barb Fittings | 14 mm Barb x R 3/8" Male BSPT Thread | 17 mm Hex | 36.5 mm Length | Straight | Brass | Pack of 10

Save $53.34

$133.35

$133.35 - $133.35

$133.35

$80.01

$80.01 - $80.01

$80.01

by Parker Hannifin
Brass Adapters:0136 Tailpiece Adaptor for Flexible Tubing, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0136 14 17 Parker \| 10 \|
Series:	0136 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	ØD	ØD1	ØD2	C	E	L	L1	ØT	Kg
0136 06 10	6 mm	4 mm	4.3 mm	1/8"	10 mm	26.5 mm	15 mm	2 mm	.006 Kg
0136 06 13	6 mm	4 mm	4.3 mm	1/4"	14 mm	31 mm	15 mm	2 mm	.015 Kg
0136 06 17	6 mm	4 mm	4.3 mm	3/8"	17 mm	31.5 mm	15 mm	2 mm	.020 Kg
0136 08 10	8 mm	6 mm	6.4 mm	1/8"	10 mm	26.5 mm	15 mm	4 mm	.007 Kg
0136 08 13	8 mm	6 mm	6.4 mm	1/4"	14 mm	31 mm	15 mm	4 mm	.015 Kg
0136 08 17	8 mm	6 mm	6.4 mm	3/8"	17 mm	31.5 mm	15 mm	4 mm	.020 Kg
0136 10 13	10 mm	8 mm	8.4 mm	1/8"	10 mm	26 mm	15 mm	2 mm	.006 Kg
0136 10 17	10 mm	8 mm	8.4 mm	3/8"	17 mm	31.5 mm	15 mm	6 mm	.020 Kg
0136 10 21	10 mm	8 mm	8.4 mm	1/2"	22 mm	36 mm	15 mm	6 mm	.039 Kg
0136 12 13	12 mm	10 mm	10.7 mm	1/4"	14 mm	36 mm	20 mm	7 mm	.018 Kg
0136 12 17	12 mm	10 mm	10.7 mm	3/8"	17 mm	36.5 mm	20 mm	8 mm	.022 Kg
0136 12 21	12 mm	10 mm	10.7 mm	1/2"	22 mm	41 mm	20 mm	8 mm	.040 Kg
0136 14 17	14 mm	12 mm	12.7 mm	3/8"	17 mm	36.5 mm	20 mm	10 mm	.023 Kg
0136 14 21	14 mm	12 mm	12.7 mm	1/2"	22 mm	41 mm	20 mm	10 mm	.041 Kg
0136 14 27	14 mm	12 mm	12.7 mm	3/4"	27 mm	44 mm	20 mm	10 mm	.072 Kg
