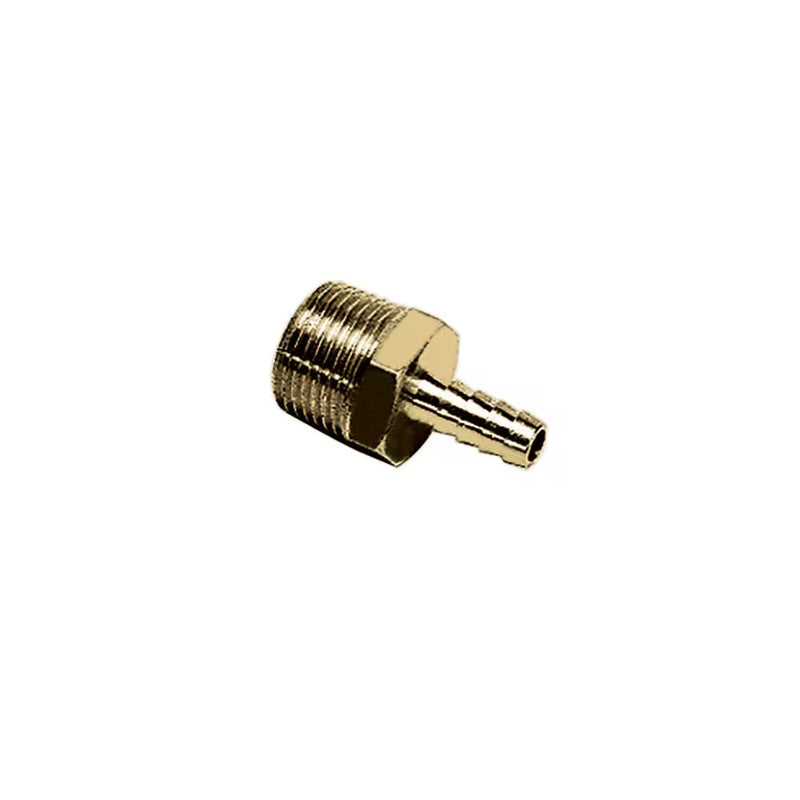

0136 10 21 by Parker | Legris Hose Barb Fittings | 10 mm Barb x R 1/2" Male BSPT Thread | 22 mm Hex | 41 mm Length | Straight | Brass | Pack of 10

0136 10 21 by Parker | Legris Hose Barb Fittings | 10 mm Barb x R 1/2" Male BSPT Thread | 22 mm Hex | 41 mm Length | Straight | Brass | Pack of 10

Save $65.85 Save $65.85
$164.63
$164.63 - $164.63
$164.63
$98.78
$98.78 - $98.78
$98.78

by Parker Hannifin
Brass Adapters:0136 Tailpiece Adaptor for Flexible Tubing, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0136 10 21 Parker | 10 |
Series: 0136 Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number ØD ØD1 ØD2 C E L L1 ØT Kg
0136 06 10 6 mm 4 mm 4.3 mm 1/8" 10 mm 26.5 mm 15 mm 2 mm .006 Kg
0136 06 13 6 mm 4 mm 4.3 mm 1/4" 14 mm 31 mm 15 mm 2 mm .015 Kg
0136 06 17 6 mm 4 mm 4.3 mm 3/8" 17 mm 31.5 mm 15 mm 2 mm .020 Kg
0136 08 10 8 mm 6 mm 6.4 mm 1/8" 10 mm 26.5 mm 15 mm 4 mm .007 Kg
0136 08 13 8 mm 6 mm 6.4 mm 1/4" 14 mm 31 mm 15 mm 4 mm .015 Kg
0136 08 17 8 mm 6 mm 6.4 mm 3/8" 17 mm 31.5 mm 15 mm 4 mm .020 Kg
0136 10 13 10 mm 8 mm 8.4 mm 1/8" 10 mm 26 mm 15 mm 2 mm .006 Kg
0136 10 17 10 mm 8 mm 8.4 mm 3/8" 17 mm 31.5 mm 15 mm 6 mm .020 Kg
0136 10 21 10 mm 8 mm 8.4 mm 1/2" 22 mm 36 mm 15 mm 6 mm .039 Kg
0136 12 13 12 mm 10 mm 10.7 mm 1/4" 14 mm 36 mm 20 mm 7 mm .018 Kg
0136 12 17 12 mm 10 mm 10.7 mm 3/8" 17 mm 36.5 mm 20 mm 8 mm .022 Kg
0136 12 21 12 mm 10 mm 10.7 mm 1/2" 22 mm 41 mm 20 mm 8 mm .040 Kg
0136 14 17 14 mm 12 mm 12.7 mm 3/8" 17 mm 36.5 mm 20 mm 10 mm .023 Kg
0136 14 21 14 mm 12 mm 12.7 mm 1/2" 22 mm 41 mm 20 mm 10 mm .041 Kg
0136 14 27 14 mm 12 mm 12.7 mm 3/4" 27 mm 44 mm 20 mm 10 mm .072 Kg
