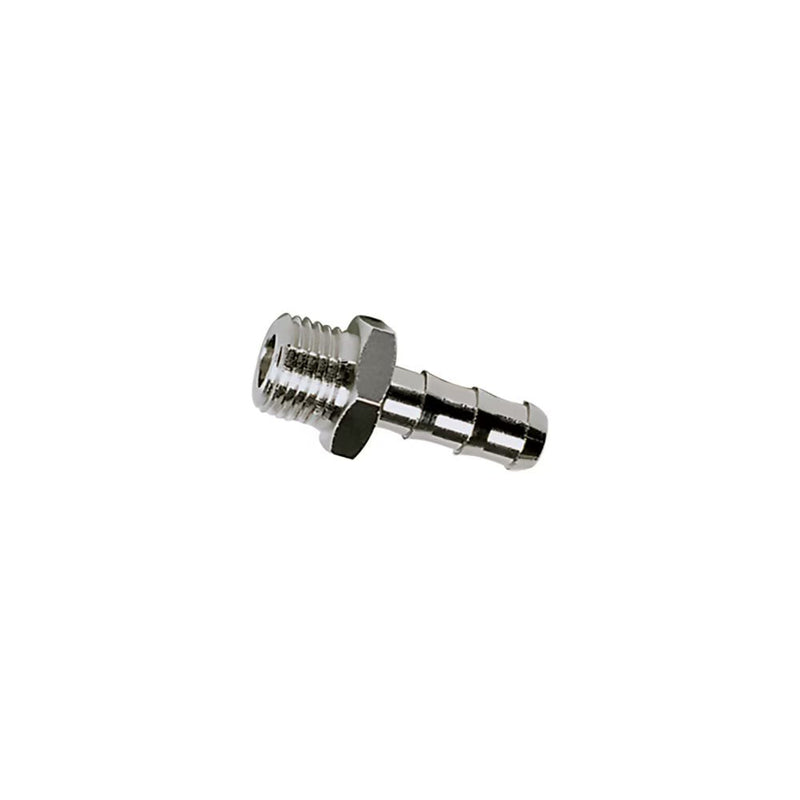

0191 07 13 by Parker | Legris Tailpiece Adapter for Rubber Hose | 7 mm Barb x 1/4" Male BSPP Thread | 17 mm Hex | 37 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $6.09

$66.96

$66.96 - $66.96

$66.96

$60.87

$60.87 - $60.87

$60.87

by Parker Hannifin
Nickel-Plated Brass Adapters:0191 Tailpiece Adaptor for Rubber Hose, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0191 07 13 Parker \| 10 \|
Series:	0191 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass


Adapters and Manifolds:


Part Number	ØD	ØD1	C	E	F	K	L	Kg
0191 04 13	4 mm	6 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.019 Kg
0191 07 13	7 mm	9 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.022 Kg
0191 07 21	7 mm	9 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.058 Kg
0191 10 13	10 mm	12.2 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.020 Kg
0191 10 21	10 mm	12.2 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.060 Kg
0191 13 21	13 mm	15.2 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.059 Kg
0191 16 21	16 mm	18.5 mm	1/2"	11 mm	27 mm	7 mm	36.5 mm	.067 Kg
