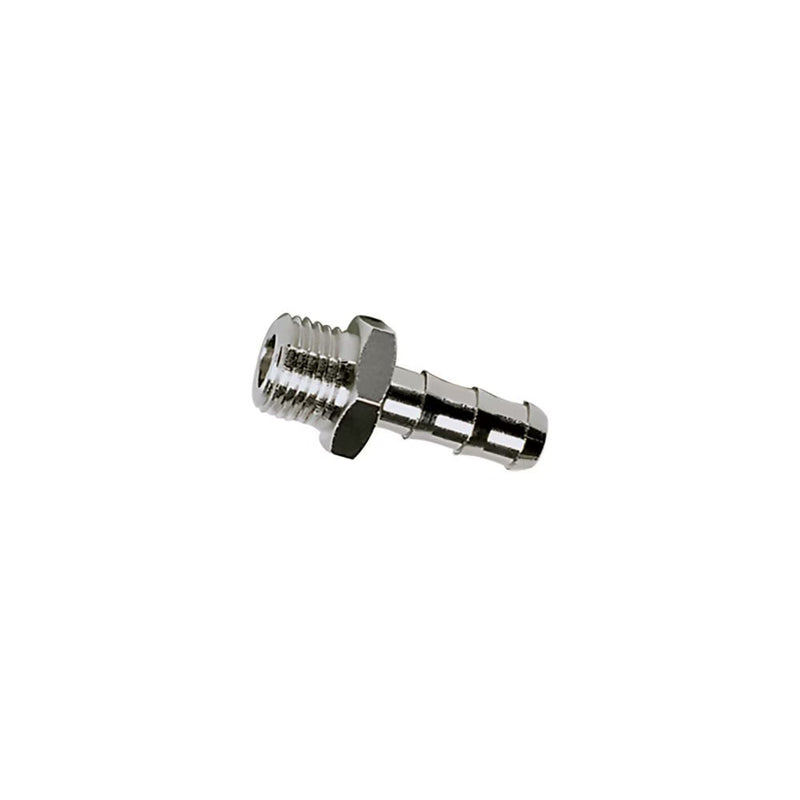

0191 10 13 by Parker | Legris Tailpiece Adapter for Rubber Hose | 10 mm Barb x 1/4" Male BSPP Thread | 17 mm Hex | 37 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $44.00

$110.00

$110.00 - $110.00

$110.00

$66.00

$66.00 - $66.00

$66.00

by Parker Hannifin
Nickel-Plated Brass Adapters:0191 Tailpiece Adaptor for Rubber Hose, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0191 10 13 Parker \| 10 \|
Series:	0191 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass


Adapters and Manifolds:


Part Number	ØD	ØD1	C	E	F	K	L	Kg
0191 04 13	4 mm	6 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.019 Kg
0191 07 13	7 mm	9 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.022 Kg
0191 07 21	7 mm	9 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.058 Kg
0191 10 13	10 mm	12.2 mm	1/4"	9.5 mm	17 mm	5 mm	22.5 mm	.020 Kg
0191 10 21	10 mm	12.2 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.060 Kg
0191 13 21	13 mm	15.2 mm	1/2"	11 mm	27 mm	7 mm	29.5 mm	.059 Kg
0191 16 21	16 mm	18.5 mm	1/2"	11 mm	27 mm	7 mm	36.5 mm	.067 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
