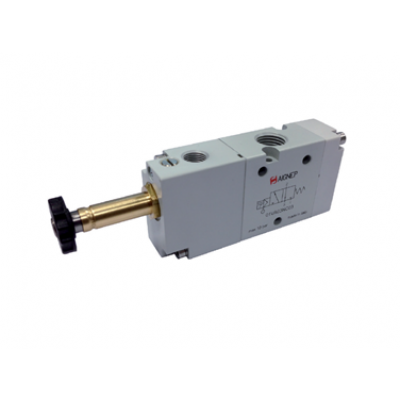

01VA03NO03N AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid External Pilot | 1/4" NPTF
01VA03NO03N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid External Pilot | 1/4" NPTF
01VA03NO03N AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid External Pilot | 1/4" NPTF

01VA03NO03N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid External Pilot | 1/4" NPTF

Save $32.06 Save $32.06
$80.15
$80.15 - $80.15
$80.15
$48.09
$48.09 - $48.09
$48.09
Specifications for Variant SKU: 01VA03NO03N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VA03NC02N 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC03N 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NO02N 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO03N 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA050002N 5/2 Monostable Spring Return No Funtion (00) 1/8" NPTF
01VA050003N 5/2 Monostable Spring Return No Funtion (00) 1/4" NPTF
01VA07CC02N 5/3 Monostable Spring Return Closed Center (CC) 1/8" NPTF
01VA07CC03N 5/3 Monostable Spring Return Closed Center (CC) 1/4" NPTF
01VA07OC02N 5/3 Monostable Spring Return Opened Center (OC) 1/8" NPTF
01VA07OC03N 5/3 Monostable Spring Return Opened Center (OC) 1/4" NPTF
01VA07PC02N 5/3 Monostable Spring Return Pressure Center (PC) 1/8" NPTF
01VA07PC03N 5/3 Monostable Spring Return Pressure Center (PC) 1/4" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
