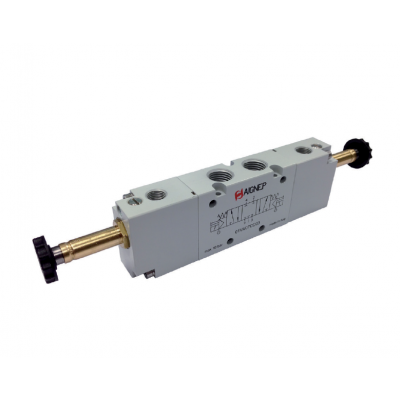

01VA07PC02N AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Solenoid External Pilot | Pressure Center | Spring Centered | Female 1/8" NPT
01VA07PC02N by AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Solenoid External Pilot | Pressure Center | Spring Centered | Female 1/8" NPT
01VA07PC02N AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Solenoid External Pilot | Pressure Center | Spring Centered | Female 1/8" NPT

01VA07PC02N by AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Solenoid External Pilot | Pressure Center | Spring Centered | Female 1/8" NPT

Save $16.70 Save $16.70
$93.98
$93.98 - $93.98
$93.98
$77.28
$77.28 - $77.28
$77.28
Specifications for Variant SKU: 01VA07PC02N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VA03NC02N 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC03N 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NO02N 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO03N 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA050002N 5/2 Monostable Spring Return No Funtion (00) 1/8" NPTF
01VA050003N 5/2 Monostable Spring Return No Funtion (00) 1/4" NPTF

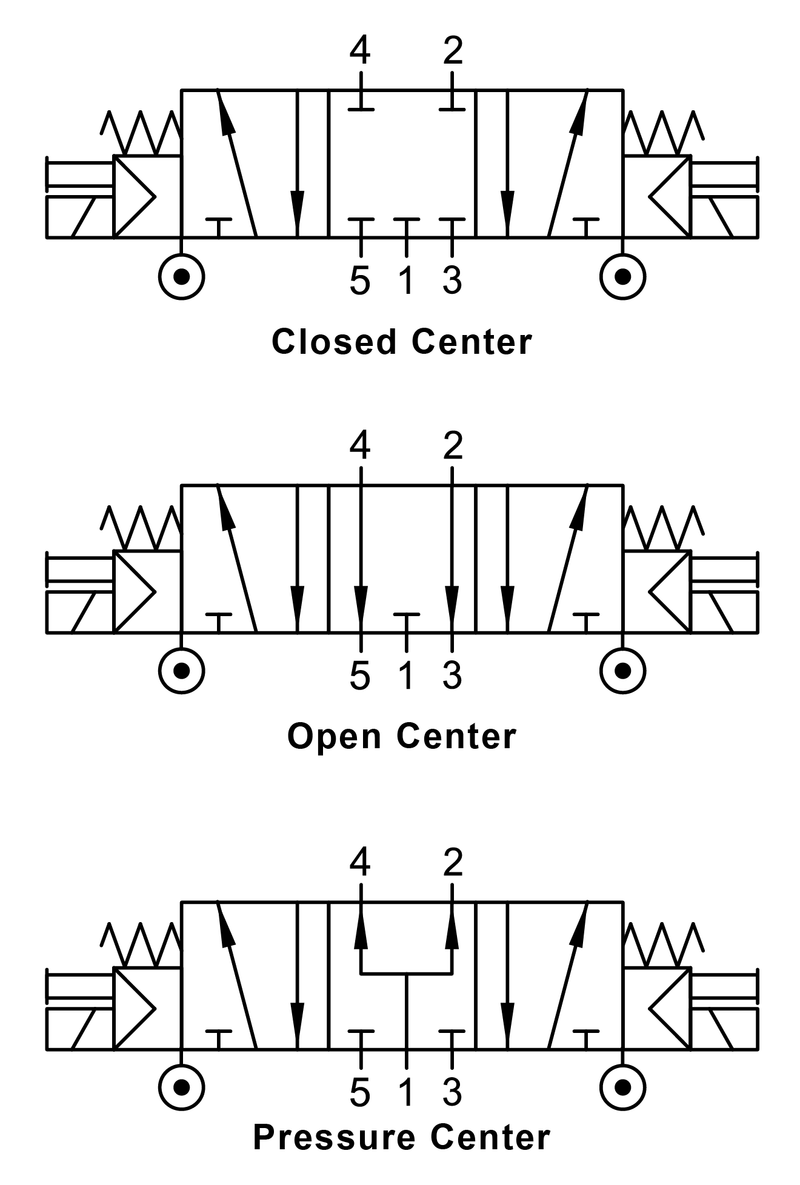

01VA07CC02N 5/3 Monostable Spring Return Closed Center (CC) 1/8" NPTF
01VA07CC03N 5/3 Monostable Spring Return Closed Center (CC) 1/4" NPTF
01VA07OC02N 5/3 Monostable Spring Return Opened Center (OC) 1/8" NPTF
01VA07OC03N 5/3 Monostable Spring Return Opened Center (OC) 1/4" NPTF
01VA07PC02N 5/3 Monostable Spring Return Pressure Center (PC) 1/8" NPTF
01VA07PC03N 5/3 Monostable Spring Return Pressure Center (PC) 1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
