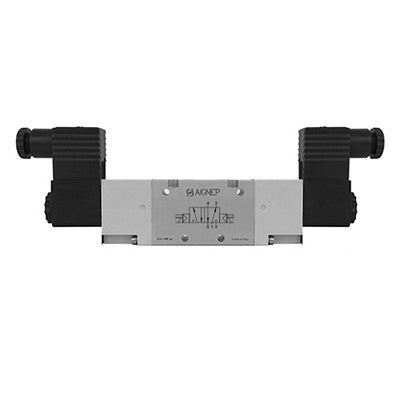

01VA1500020101 AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 12V DC/3 W coil | Black Con

01VA1500020101 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 12V DC/3 W coil | Black Con

Name: 01VA1500020101 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 12V DC/3 W coil | Black Con
Brand: AIGNEP
SKU: 01VA1500020101 AIGNEP
Price: 85.13 USD
Availability: InStock

Save $56.75

$141.88

$141.88 - $141.88

$141.88

$85.13

$85.13 - $85.13

$85.13

Specifications for Variant SKU: 01VA1500020101 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s):	Plastic

SOLENOID ASSISTED

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Function	Size
01VA1500020101	01VA1500020102	12V DC	3W	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500020201	01VA1500020202	24V DC	3W	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500020301	01VA1500020302	2W	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500020401	01VA1500020402	24V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500020501	01VA1500020502	110V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500020601	01VA1500020602	220V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/8"
01VA1500030101	01VA1500030102	12V DC	3W	5/2	Two Stable Positions	No Function (00)	G 1/4"
01VA1500030201	01VA1500030202	24V DC	3W	5/2	Two Stable Positions	No Function (00)	G 1/4"
01VA1500030301	01VA1500030302	24V DC	2W	5/2	Two Stable Positions	No Function (00)	G 1/4"
01VA1500030401	01VA1500030402	24V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/4"
01VA1500030501	01VA1500030502	110V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/4"
01VA1500030601	01VA1500030602	220V AC	5VA	5/2	Two Stable Positions	No Function (00)	G 1/4"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
