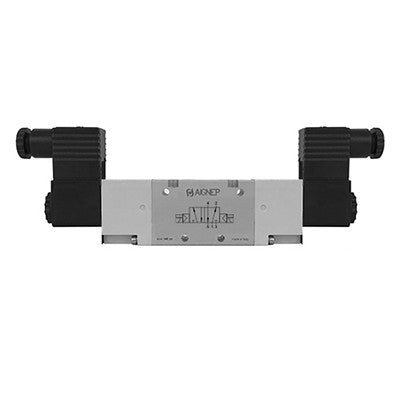

01VA1500020201 AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 24V DC/3W coil | Black Con
01VA1500020201 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 24V DC/3W coil | Black Con
01VA1500020201 AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 24V DC/3W coil | Black Con

01VA1500020201 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8" | 24V DC/3W coil | Black Con

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 01VA1500020201 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VA1500020101 01VA1500020102 12V DC 3W 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500020201 01VA1500020202 24V DC 3W 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500020301 01VA1500020302 2W 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500020401 01VA1500020402 24V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500020501 01VA1500020502 110V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500020601 01VA1500020602 220V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/8"
01VA1500030101 01VA1500030102 12V DC 3W 5/2 Two Stable Positions No Function (00) G 1/4"
01VA1500030201 01VA1500030202 24V DC 3W 5/2 Two Stable Positions No Function (00) G 1/4"
01VA1500030301 01VA1500030302 24V DC 2W 5/2 Two Stable Positions No Function (00) G 1/4"
01VA1500030401 01VA1500030402 24V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/4"
01VA1500030501 01VA1500030502 110V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/4"
01VA1500030601 01VA1500030602 220V AC 5VA 5/2 Two Stable Positions No Function (00) G 1/4"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
