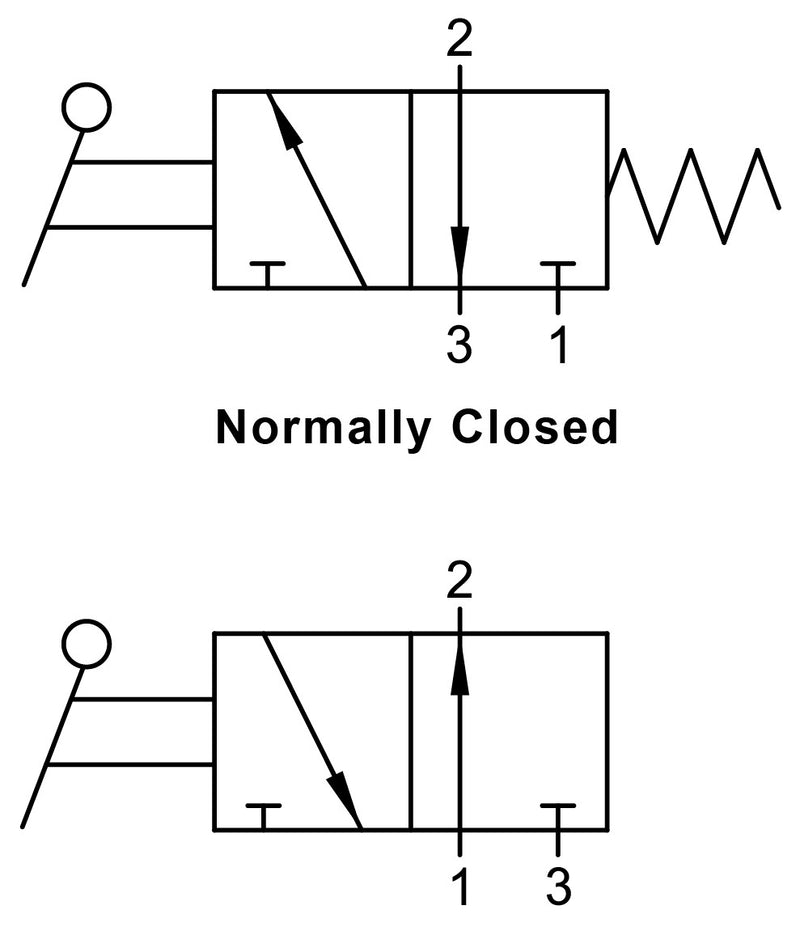

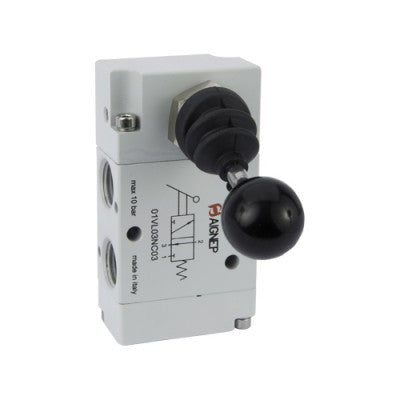

01VL03NC03N AIGNEP | 01V Series | Pneumatic Valve | 3/2 Normally Closed Lever/Spring Return 1/4" NPTF Ports
01VL03NC03N by AIGNEP | 01V Series | Pneumatic Valve | 3/2 Normally Closed Lever/Spring Return 1/4" NPTF Ports
01VL03NC03N AIGNEP | 01V Series | Pneumatic Valve | 3/2 Normally Closed Lever/Spring Return 1/4" NPTF Ports

01VL03NC03N by AIGNEP | 01V Series | Pneumatic Valve | 3/2 Normally Closed Lever/Spring Return 1/4" NPTF Ports

Save $26.84 Save $26.84
$67.10
$67.10 - $67.10
$67.10
$40.26
$40.26 - $40.26
$40.26
Specifications for Variant SKU: 01VL03NC03N AIGNEP
Series: 01V Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
90° LEVER VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Pressure Drive: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VL03NC02N 3/2 Lever Operated - Spring Return Normally Closed (NC) 1/8 NPTF
01VL03NC03N 3/2 Lever Operated - Spring Return Normally Closed (NC) 1/4 NPTF
01VL130002N 3/2 Lever Operated - Push/Pull - 1/8 NPTF
01VL130003N 3/2 Lever Operated - Push/Pull - 1/4 NPTF
01VL050002N 5/2 Lever Operated - Spring Return - 1/8 NPTF
01VL050003N 5/2 Lever Operated - Spring Return - 1/4 NPTF
01VL150002N 5/2 Lever Operated - Push/Pull - 1/8 NPTF
01VL150003N 5/2 Lever Operated - Push/Pull - 1/4 NPTF
01VL07CC02N 5/3 Lever Operated - Spring Centered Center Closed (CC) 1/8 NPTF
01VL07CC03N 5/3 Lever Operated - Spring Centered Center Closed (CC) 1/4 NPTF
01VL07OC02N 5/3 Lever Operated - Spring Centered Opened Center (OC) 1/8 NPTF
01VL07OC03N 5/3 Lever Operated - Spring Centered Opened Center (OC) 1/4 NPTF
01VL27CC02N 5/3 Lever Operated - Push/Pull Center Closed (CC) 1/8 NPTF
01VL27CC03N 5/3 Lever Operated - Push/Pull Center Closed (CC) 1/4 NPTF
01VL27OC02N 5/3 Lever Operated - Push/Pull Opened Center (OC) 1/8 NPTF
01VL27OC03N 5/3 Lever Operated - Push/Pull Opened Center (OC) 1/4 NPTF
01VL27PC03N 5/3 Lever Operated - Push/Pull Pressure Control (PC) 1/4 NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
