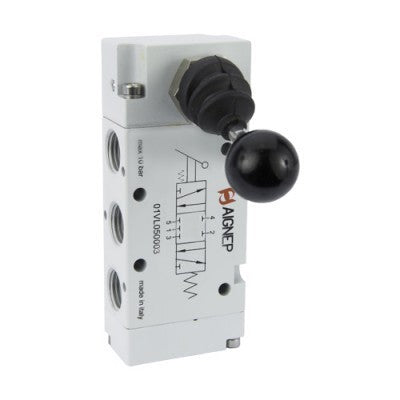

01VL150002N AIGNEP | 01V Series | Pneumatic Valve | 5/2 Lever/Detent 1/8" NPTF Ports

01VL150002N by AIGNEP | 01V Series | Pneumatic Valve | 5/2 Lever/Detent | 1/8" NPTF Ports

Save $4.50 Save $4.50
$45.01
$45.01 - $45.01
$45.01
$40.51
$40.51 - $40.51
$40.51
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 01VL150002N AIGNEP
Series: 01V Series
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Plastic
90° LEVER VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Pressure Drive: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VL03NC02N 3/2 Lever Operated - Spring Return Normally Closed (NC) 1/8 NPTF
01VL03NC03N 3/2 Lever Operated - Spring Return Normally Closed (NC) 1/4 NPTF
01VL130002N 3/2 Lever Operated - Push/Pull - 1/8 NPTF
01VL130003N 3/2 Lever Operated - Push/Pull - 1/4 NPTF
01VL050002N 5/2 Lever Operated - Spring Return - 1/8 NPTF
01VL050003N 5/2 Lever Operated - Spring Return - 1/4 NPTF
01VL150002N 5/2 Lever Operated - Push/Pull - 1/8 NPTF
01VL150003N 5/2 Lever Operated - Push/Pull - 1/4 NPTF

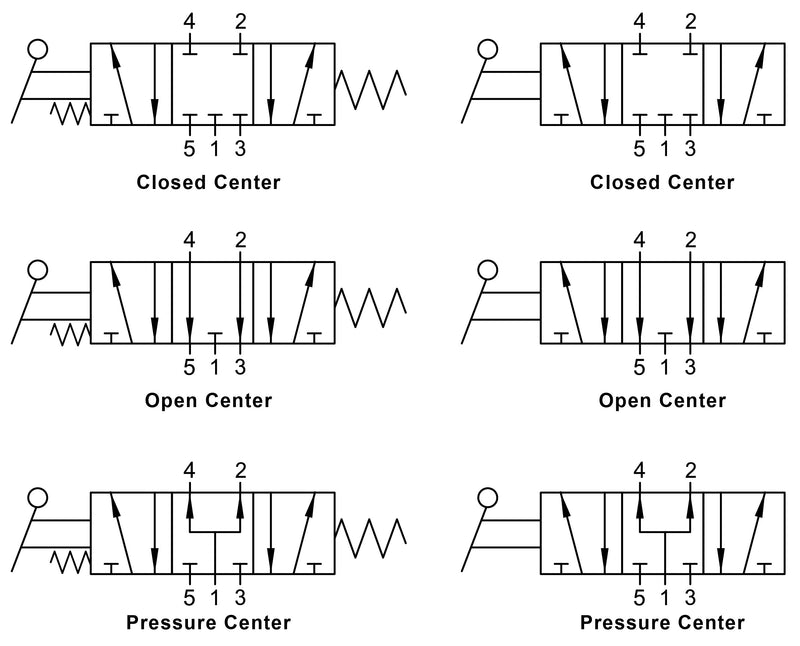

01VL07CC02N 5/3 Lever Operated - Spring Centered Center Closed (CC) 1/8 NPTF
01VL07CC03N 5/3 Lever Operated - Spring Centered Center Closed (CC) 1/4 NPTF
01VL07OC02N 5/3 Lever Operated - Spring Centered Opened Center (OC) 1/8 NPTF
01VL07OC03N 5/3 Lever Operated - Spring Centered Opened Center (OC) 1/4 NPTF
01VL27CC02N 5/3 Lever Operated - Push/Pull Center Closed (CC) 1/8 NPTF
01VL27CC03N 5/3 Lever Operated - Push/Pull Center Closed (CC) 1/4 NPTF
01VL27OC02N 5/3 Lever Operated - Push/Pull Opened Center (OC) 1/8 NPTF
01VL27OC03N 5/3 Lever Operated - Push/Pull Opened Center (OC) 1/4 NPTF
01VL27PC03N 5/3 Lever Operated - Push/Pull Pressure Control (PC) 1/4 NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
