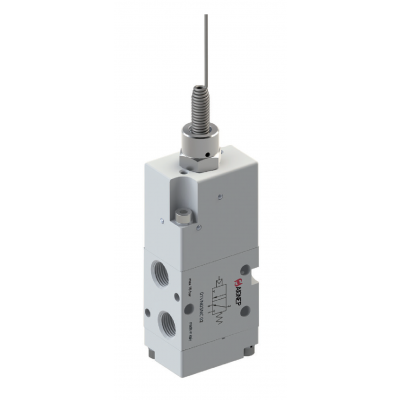

01VN03NC02N AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Whisker Spring Return | 1/8" NPT

01VN03NC02N by AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Whisker Spring Return | 1/8" NPT

Save $14.99

$57.18

$57.18 - $57.18

$57.18

$42.19

$42.19 - $42.19

$42.19

Specifications for Variant SKU: 01VN03NC02N AIGNEP
Series:	01V Series
Ends Configuration:	1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Plastic

SERVO-PILOTED WHISKER VALVES

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	2 ÷ 10 bar
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

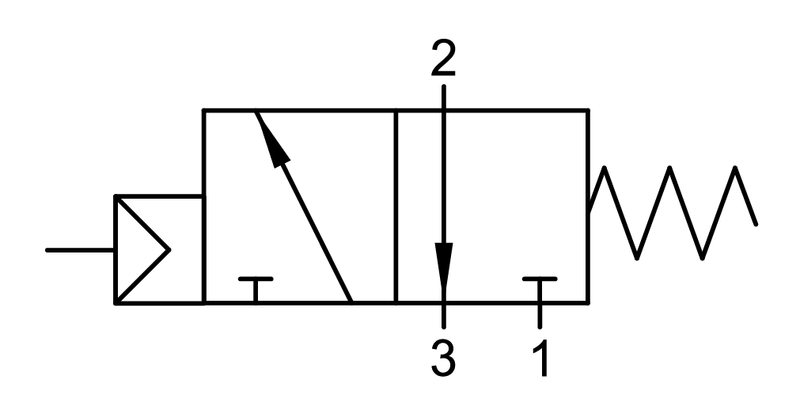

Part Number (Normally Closed)	Part Number (No Funtion)	Ways	Reactuation	Size
01VN03NC02N 01VN03NC02	-	3/2	Monostable Spring Return	1/8"
-	01VN050002N 01VN050002	5/2	Monostable Spring Return	1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
