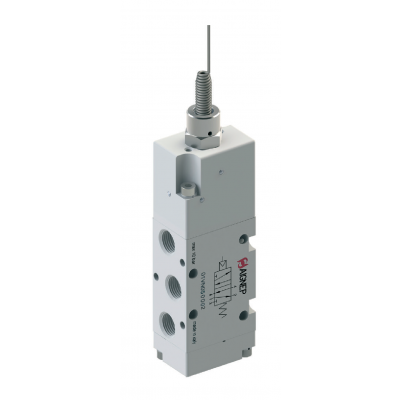

01VN050002 AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP

01VN050002 by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP

Name: 01VN050002 by AIGNEP | 01V Series | 5 way/2 position | Servo-Piloted Whisker Spring Return | 1/8" BSPP
Brand: AIGNEP
SKU: 01VN050002 AIGNEP
Price: 44.23 USD
Availability: InStock

Save $29.49

$73.72

$73.72 - $73.72

$73.72

$44.23

$44.23 - $44.23

$44.23

Specifications for Variant SKU: 01VN050002 AIGNEP
Series:	01V Series
Ends Configuration:	1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s):	Plastic

SERVO-PILOTED WHISKER VALVES

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	2 ÷ 10 bar
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Normally Closed)	Part Number (No Funtion)	Ways	Reactuation	Size
01VN03NC02N 01VN03NC02	-	3/2	Monostable Spring Return	1/8"

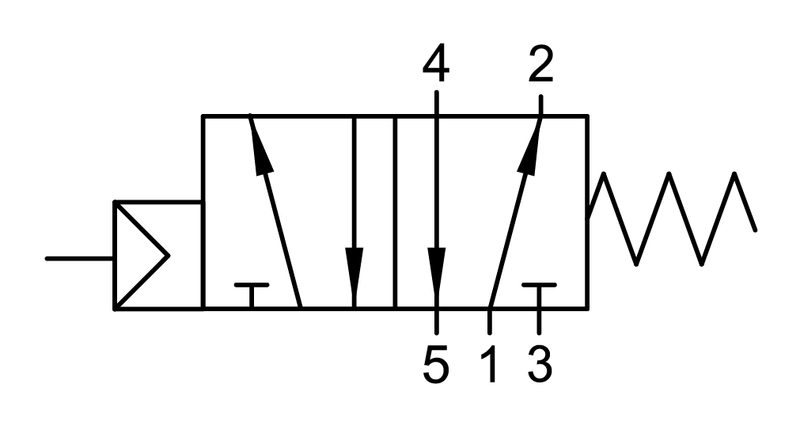

-	01VN050002N 01VN050002	5/2	Monostable Spring Return	1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
