01VP07OC05N AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Air Pilot | Open Center | Spring Center | Female 1/2" NPT

01VP07OC05N by AIGNEP | 01V Control Valves Series | 5 port/4 way/3 position | Double Air Pilot | Open Center | Spring Center | Female 1/2" NPT

Save $23.91

$137.87

$137.87 - $137.87

$137.87

$113.96

$113.96 - $113.96

$113.96

Specifications for Variant SKU: 01VP07OC05N AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Plastic

PNEUMATIC VALVE

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Pressure Drive:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number	Ways	Reactuation	Function	Size
01VP03NC02N	3/2	Single Air Pilot - Spring Return	Normally Closed (NC)	1/8 NPTF
01VP03NC03N	3/2	Single Air Pilot - Spring Return	Normally Closed (NC)	1/4 NPTF
01VP03NC05N	3/2	Single Air Pilot - Push/Pull	Normally Closed (NC)	1/2 NPTF
01VP03NO02N	3/2	Single Air Pilot - Spring Return	Normally Opened (NO)	1/8 NPTF
01VP03NO03N	3/2	Single Air Pilot - Spring Return	Normally Opened (NO)	1/4 NPTF
01VP03NO05N	3/2	Single Air Pilot - Push/Pull	Normally Opened (NO)	1/2 NPTF
01VP130002N	3/2	Double Air Pilot	-	1/4 NPTF
01VP130003N	3/2	Double Air Pilot	-	1/4 NPTF
01VP130005N	3/2	Double Air Pilot	-	1/2 NPTF
01VP050002N	5/2	Single Air Pilot - Spring Return	-	1/8 NPTF
01VP050003N	5/2	Single Air Pilot - Spring Return	-	1/4 NPTF
01VP050005N	5/2	Single Air Pilot - Spring Return	-	1/2 NPTF
01VP150002N	5/2	Double Air Pilot	-	1/8 NPTF
01VP150003N	5/2	Double Air Pilot	-	1/4 NPTF
01VP150005N	5/2	Double Air Pilot	-	1/2 NPTF

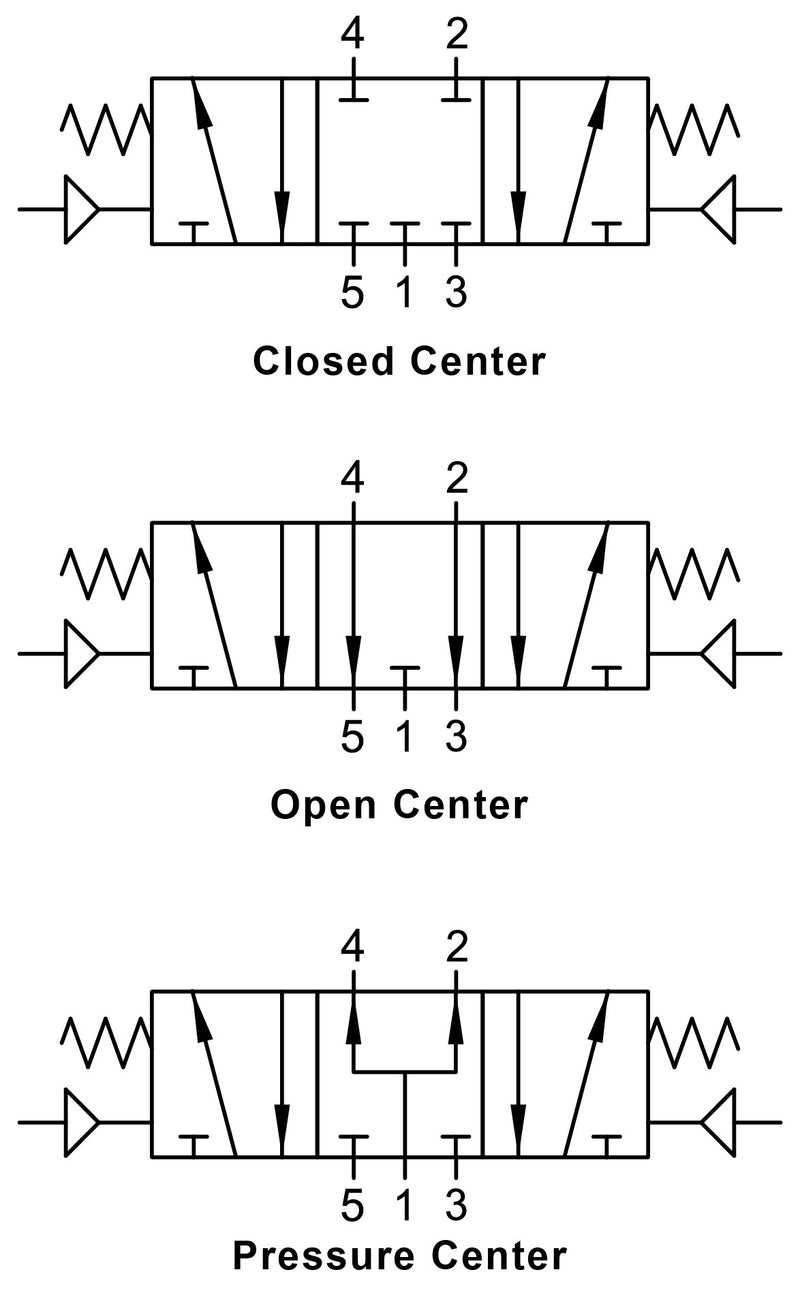

01VP07CC02N	5/3	Double Air Pilot - Spring Return	Center Closed (CC)	1/8 NPTF
01VP07CC03N	5/3	Double Air Pilot - Spring Return	Center Closed (CC)	1/4 NPTF
01VP07CC05N	5/3	Double Air Pilot - Spring Return	Center Closed (CC)	1/2 NPTF
01VP07OC02N	5/3	Double Air Pilot - Spring Return	Opened Center (OC)	1/8 NPTF
01VP07OC03N	5/3	Double Air Pilot - Spring Return	Opened Center (OC)	1/4 NPTF
01VP07OC05N	5/3	Double Air Pilot - Spring Return	Opened Center (OC)	1/2 NPTF
01VP07PC02N	5/3	Double Air Pilot - Spring Return	Pressure Control (PC)	1/8 NPTF
01VP07PC03N	5/3	Double Air Pilot - Spring Return	Pressure Control (PC)	1/4 NPTF
01VP07PC05N	5/3	Double Air Pilot - Spring Return	Pressure Control (PC)	1/2 NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
