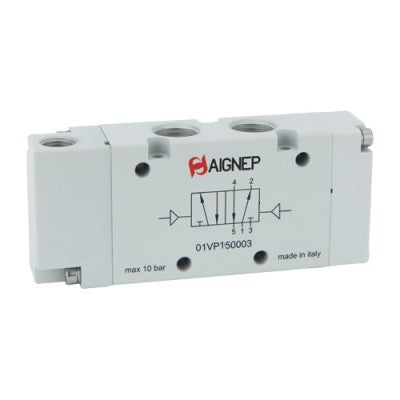

01VP150002N AIGNEP | 01V Control Valves Series | Pneumatic Valve | 5/2 Double Air Pilot 1/8" NPTF Ports
01VP150002N by AIGNEP | 01V Control Valves Series | Pneumatic Valve | 5/2 Double Air Pilot 1/8" NPTF Ports
01VP150002N AIGNEP | 01V Control Valves Series | Pneumatic Valve | 5/2 Double Air Pilot 1/8" NPTF Ports

01VP150002N by AIGNEP | 01V Control Valves Series | Pneumatic Valve | 5/2 Double Air Pilot 1/8" NPTF Ports

Save $0.40 Save $0.40
$40.54
$40.54 - $40.54
$40.54
$40.14
$40.14 - $40.14
$40.14
Specifications for Variant SKU: 01VP150002N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Plastic
PNEUMATIC VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Pressure Drive: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VP03NC02N 3/2 Single Air Pilot - Spring Return Normally Closed (NC) 1/8 NPTF
01VP03NC03N 3/2 Single Air Pilot - Spring Return Normally Closed (NC) 1/4 NPTF
01VP03NC05N 3/2 Single Air Pilot - Push/Pull Normally Closed (NC) 1/2 NPTF
01VP03NO02N 3/2 Single Air Pilot - Spring Return Normally Opened (NO) 1/8 NPTF
01VP03NO03N 3/2 Single Air Pilot - Spring Return Normally Opened (NO) 1/4 NPTF
01VP03NO05N 3/2 Single Air Pilot - Push/Pull Normally Opened (NO) 1/2 NPTF
01VP130002N 3/2 Double Air Pilot - 1/4 NPTF
01VP130003N 3/2 Double Air Pilot - 1/4 NPTF
01VP130005N 3/2 Double Air Pilot - 1/2 NPTF
01VP050002N 5/2 Single Air Pilot - Spring Return - 1/8 NPTF
01VP050003N 5/2 Single Air Pilot - Spring Return - 1/4 NPTF
01VP050005N 5/2 Single Air Pilot - Spring Return - 1/2 NPTF

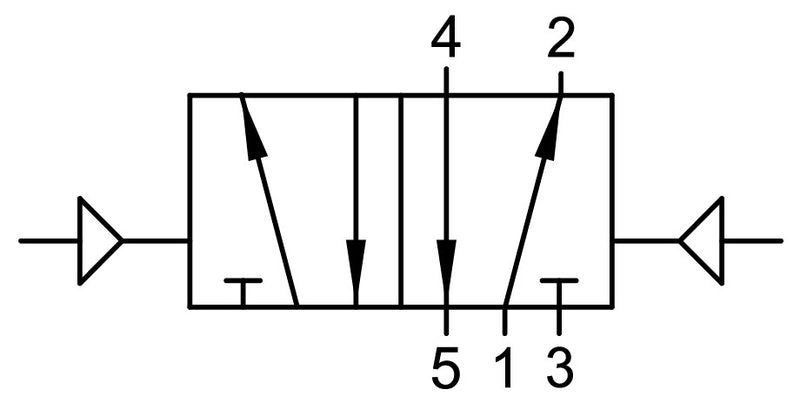

01VP150002N 5/2 Double Air Pilot - 1/8 NPTF
01VP150003N 5/2 Double Air Pilot - 1/4 NPTF
01VP150005N 5/2 Double Air Pilot - 1/2 NPTF
01VP07CC02N 5/3 Double Air Pilot - Spring Return Center Closed (CC) 1/8 NPTF
01VP07CC03N 5/3 Double Air Pilot - Spring Return Center Closed (CC) 1/4 NPTF
01VP07CC05N 5/3 Double Air Pilot - Spring Return Center Closed (CC) 1/2 NPTF
01VP07OC02N 5/3 Double Air Pilot - Spring Return Opened Center (OC) 1/8 NPTF
01VP07OC03N 5/3 Double Air Pilot - Spring Return Opened Center (OC) 1/4 NPTF
01VP07OC05N 5/3 Double Air Pilot - Spring Return Opened Center (OC) 1/2 NPTF
01VP07PC02N 5/3 Double Air Pilot - Spring Return Pressure Control (PC) 1/8 NPTF
01VP07PC03N 5/3 Double Air Pilot - Spring Return Pressure Control (PC) 1/4 NPTF
01VP07PC05N 5/3 Double Air Pilot - Spring Return Pressure Control (PC) 1/2 NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
