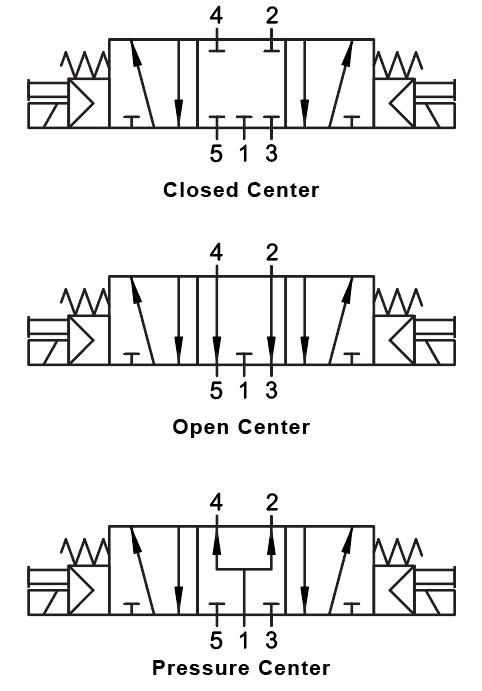

01VS07CC020202 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Centered | Closed Center | G-Thread 1/8" | 24V DC/3W coil | LED Con
01VS07CC020202 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Centered | Closed Center | G-Thread 1/8" | 24V DC/3W coil | LED Con
01VS07CC020202 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Centered | Closed Center | G-Thread 1/8" | 24V DC/3W coil | LED Con

01VS07CC020202 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Centered | Closed Center | G-Thread 1/8" | 24V DC/3W coil | LED Con

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 01VS07CC020202 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS07CC020201 01VS07CC020202 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC020102 01VS07CC020102 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC020301 01VS07CC020302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC020401 01VS07CC020402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC020501 01VS07CC020502 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC020601 01VS07CC020602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/8"
01VS07CC030101 01VS07CC030102 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC030201 01VS07CC030202 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC030301 01VS07CC030302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC030401 01VS07CC030402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC020502 01VS07CC030501 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC030601 01VS07CC030602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/4"
01VS07CC050201 01VS07CC050102 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/2"
01VS07CC050301 01VS07CC050302 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) G 1/2"
01VS07OC050301 01VS07CC050302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) G 1/2"
01VS07CC050401 01VS07CC050402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/2"
01VS07CC050501 01VS07CC050502 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/2"
01VS07CC050601 01VS07CC050602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
