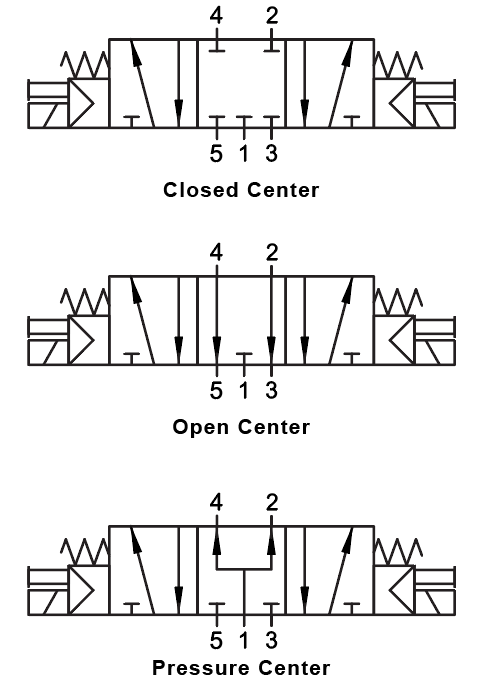

01VS07CC030402 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Centered Closed Center G-Thread 1/4" | 24V AC/5VA coil | LED Con

01VS07CC030402 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Centered Closed Center G-Thread 1/4" | 24V AC/5VA coil | LED Con

Name: 01VS07CC030402 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Centered Closed Center G-Thread 1/4" | 24V AC/5VA coil | LED Con
Brand: AIGNEP
SKU: 01VS07CC030402 AIGNEP
Price: 109.27 USD
Availability: InStock

Save $72.85

$182.12

$182.12 - $182.12

$182.12

$109.27

$109.27 - $109.27

$109.27

Specifications for Variant SKU: 01VS07CC030402 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Plastic

SOLENOID PILOT VALVE

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body (1/8 - 1/4 - 1/2) • Anodised aluminium body (3/8) • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Function	Size
01VS07CC020201	01VS07CC020202	12V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC020102	01VS07CC020102	24V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC020301	01VS07CC020302	24V DC	2W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC020401	01VS07CC020402	24V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC020501	01VS07CC020502	110V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC020601	01VS07CC020602	220V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/8"
01VS07CC030101	01VS07CC030102	12V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC030201	01VS07CC030202	24V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC030301	01VS07CC030302	24V DC	2W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC030401	01VS07CC030402	24V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC020502	01VS07CC030501	110V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC030601	01VS07CC030602	220V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/4"
01VS07CC050201	01VS07CC050102	12V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"
01VS07CC050301	01VS07CC050302	24V DC	3W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"
01VS07OC050301	01VS07CC050302	24V DC	2W	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"
01VS07CC050401	01VS07CC050402	24V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"
01VS07CC050501	01VS07CC050502	110V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"
01VS07CC050601	01VS07CC050602	220V AC	5VA	5/3	Monostable Spring Return	Center Closed (CC)	G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
