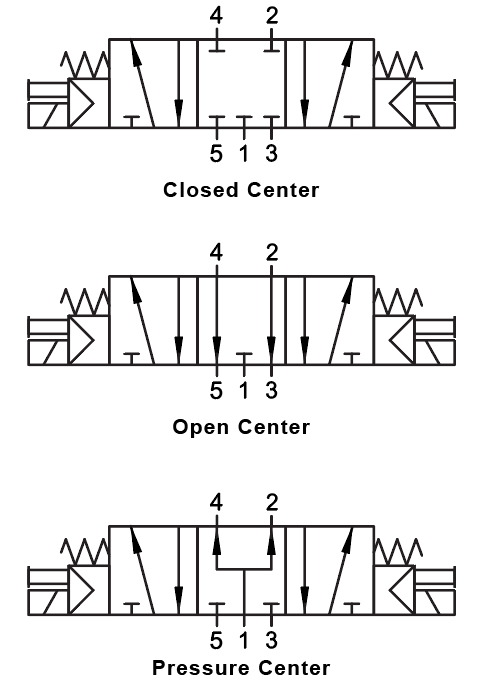

01VS07CC03N0302 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Closed Center 1/4" NPTF | 24V DC/2 W coil | LED Con
01VS07CC03N0302 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Closed Center 1/4" NPTF | 24V DC/2 W coil | LED Con
01VS07CC03N0302 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Closed Center 1/4" NPTF | 24V DC/2 W coil | LED Con

01VS07CC03N0302 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Closed Center 1/4" NPTF | 24V DC/2 W coil | LED Con

Save $1.05 Save $1.05
$105.12
$105.12 - $105.12
$105.12
$104.07
$104.07 - $104.07
$104.07
Specifications for Variant SKU: 01VS07CC03N0302 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS07CC02N0201 01VS07CC02N0202 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC020301 01VS07CC02N0102 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC02N0301 01VS07CC02N0302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC02N0401 01VS07CC02N0402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC02N0501 01VS07CC02N0502 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC02N0601 01VS07CC02N0602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/8" NPTF
01VS07CC03N0101 01VS07CC03N0102 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC03N0201 01VS07CC03N0202 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC03N0301 01VS07CC03N0302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC03N0401 01VS07CC03N0402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC03N0501 01VS07CC03N0502 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC03N0601 01VS07CC03N0602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/4" NPTF
01VS07CC05N0101 01VS07CC05N0102 12V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
01VS07CC05N0301 01VS07CC05N0302 24V DC 3W 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
01VS07OC05N0301 01VS07CC05N0302 24V DC 2W 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
01VS07CC05N0401 01VS07CC05N0402 24V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
01VS07CC05N0501 01VS07CC05N0502 110V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
01VS07CC05N0601 01VS07CC05N0602 220V AC 5VA 5/3 Monostable Spring Return Center Closed (CC) 1/2" NPTF
