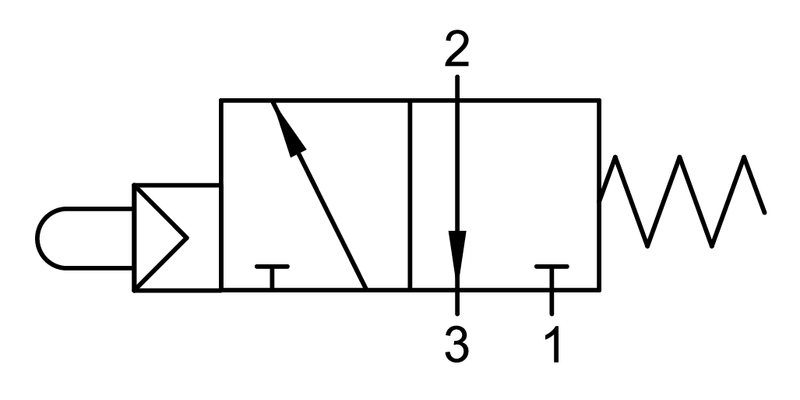

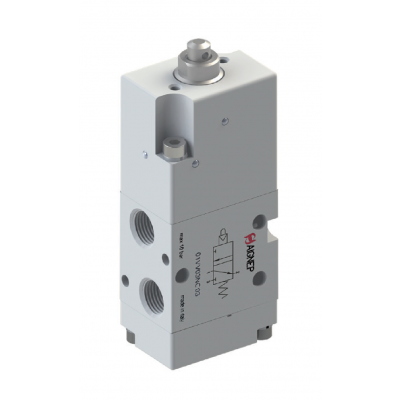

01VV03NC02 AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" BSPP
01VV03NC02 by AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" BSPP
01VV03NC02 AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" BSPP

01VV03NC02 by AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" BSPP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 01VV03NC02 AIGNEP
Series: 01V Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
MECHANICALLY ACTUATED VALV
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: 2 ÷ 10 bar
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Normally Closed) Part Number (No Funtion) Ways Reactuation Size
01VV03NC02N
01VV03NC02 		- 3/2 Monostable Spring Return 1/8"
- 01VV050002N
01VV050002 		5/2 Monostable Spring Return 1/8"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
