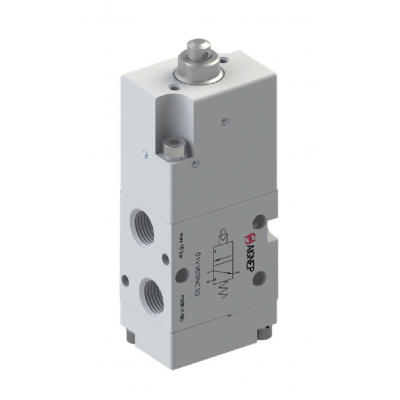

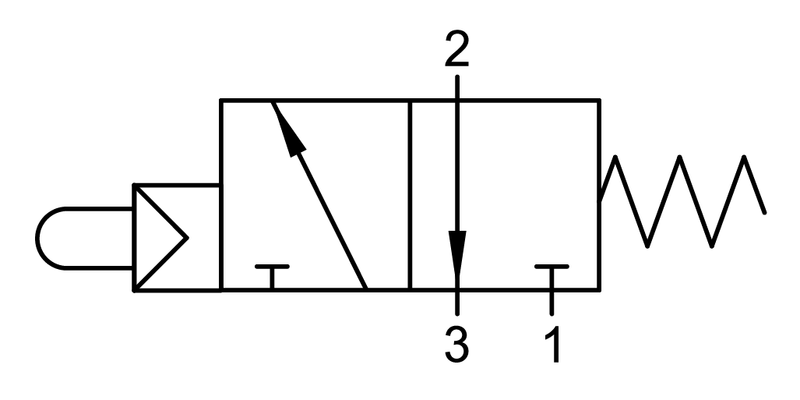

01VV03NC02N AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" NPT

01VV03NC02N by AIGNEP | 01V Series | 3 way/2 position | Normally Closed | Servo-Piloted Tappet Spring Return | 1/8" NPT

Save $3.81

$38.09

$38.09 - $38.09

$38.09

$34.28

$34.28 - $34.28

$34.28

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 01VV03NC02N AIGNEP
Series:	01V Series
Ends Configuration:	1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Plastic

MECHANICALLY ACTUATED VALV

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	2 ÷ 10 bar
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Normally Closed)	Part Number (No Funtion)	Ways	Reactuation	Size
01VV03NC02N 01VV03NC02	-	3/2	Monostable Spring Return	1/8"
-	01VV050002N 01VV050002	5/2	Monostable Spring Return	1/8"
