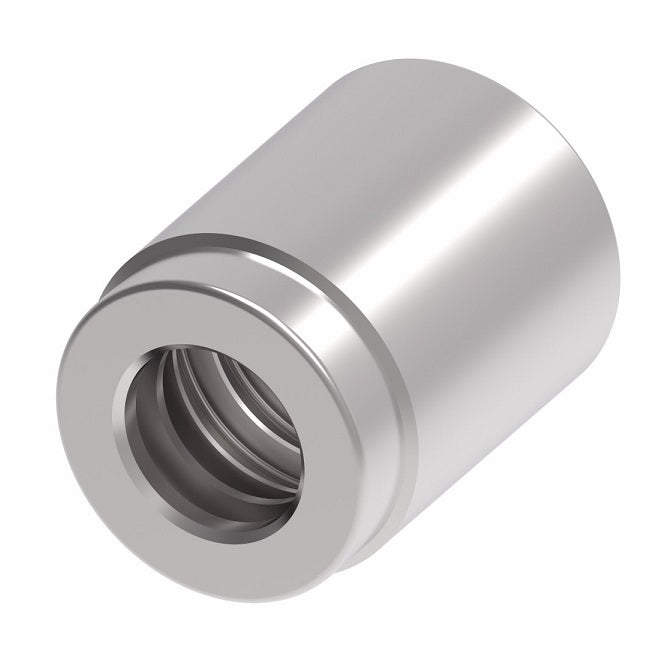

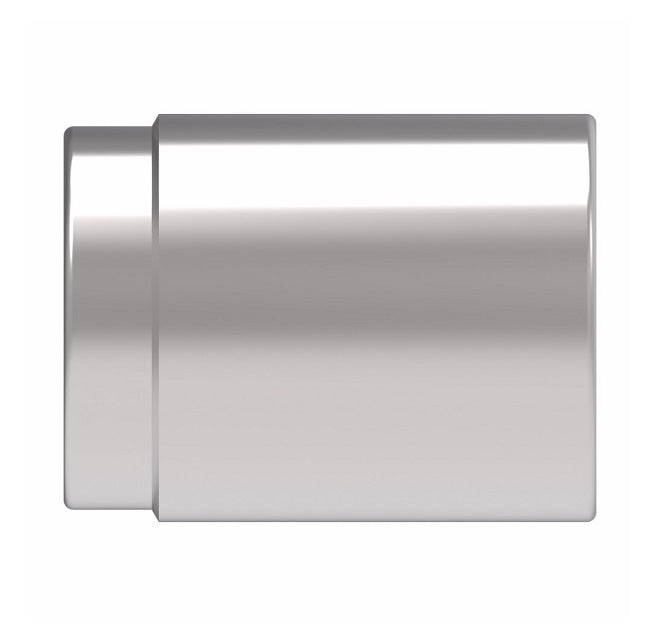

03310-04NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -04 Hose Size | Steel
03310-04NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -04 Hose Size | Steel
03310-04NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -04 Hose Size | Steel
03310-04NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -04 Hose Size | Steel

03310-04NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -04 Hose Size | Steel

$1.82 - $1.82
$1.82
$1.82 - $1.82
$1.82

Winner by Danfoss
Crimp Socket for 2-Piece Fittings | For use with 2 Wire Hose
Specifications for Variant SKU: 03310-04NZF Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC110 Series  |   EC215 Series
Part Number DN Dash Size A OD
03310-04NZF 6 -04 1.20" 0.91"
03310-06NZF 10 -06 1.26" 1.02"
03310-08NZF 12 -08 1.34" 1.14"
03310-10ANZF 16 -10 1.38" 1.36"
03310-12NZF 20 -12 1.65" 1.46"
03310-16NZF 25 -16 2.05" 1.84"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
