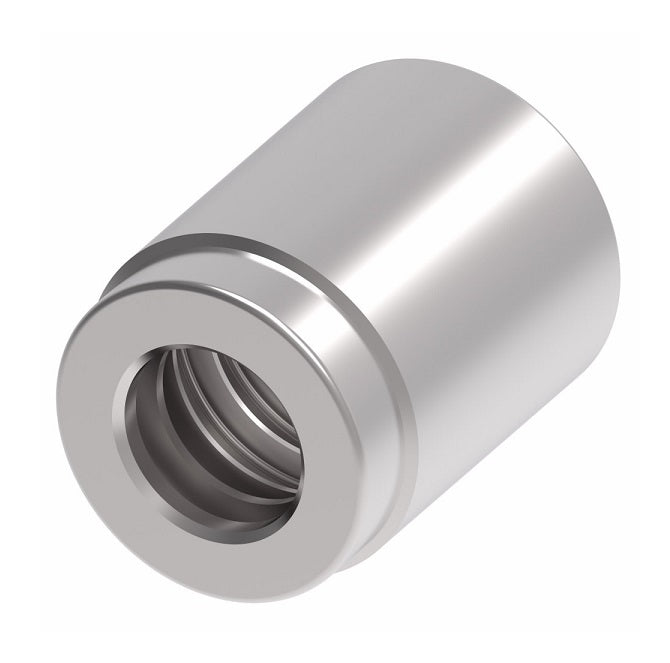

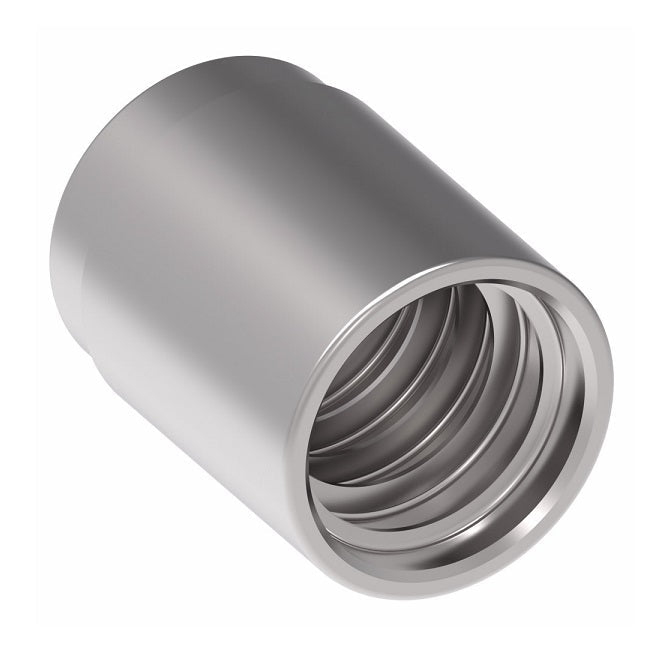

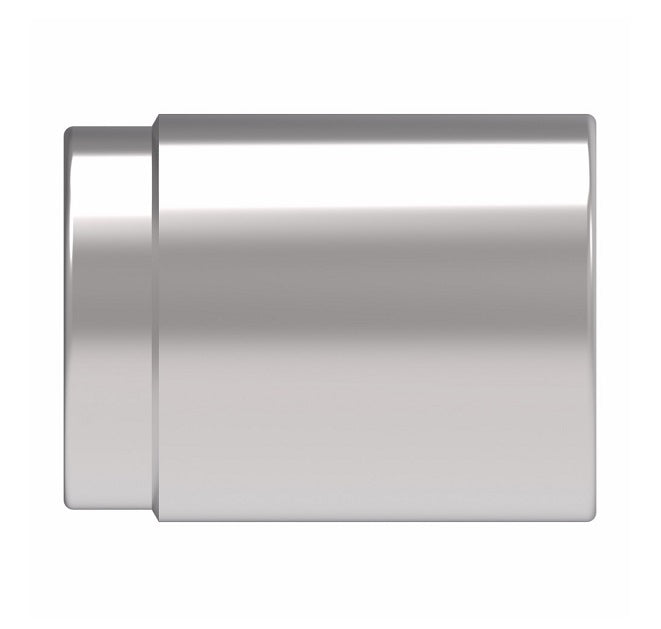

03310-12NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -12 Hose Size | Steel
03310-12NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -12 Hose Size | Steel
03310-12NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -12 Hose Size | Steel
03310-12NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -12 Hose Size | Steel

03310-12NZF Winner by Danfoss | Crimp Socket for 2 Wire Hose | -12 Hose Size | Steel

$4.35 - $4.35
$4.35
$4.35 - $4.35
$4.35

Winner by Danfoss
Crimp Socket for 2-Piece Fittings | For use with 2 Wire Hose
Specifications for Variant SKU: 03310-12NZF Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC110 Series  |   EC215 Series
Part Number DN Dash Size A OD
03310-04NZF 6 -04 1.20" 0.91"
03310-06NZF 10 -06 1.26" 1.02"
03310-08NZF 12 -08 1.34" 1.14"
03310-10ANZF 16 -10 1.38" 1.36"
03310-12NZF 20 -12 1.65" 1.46"
03310-16NZF 25 -16 2.05" 1.84"
