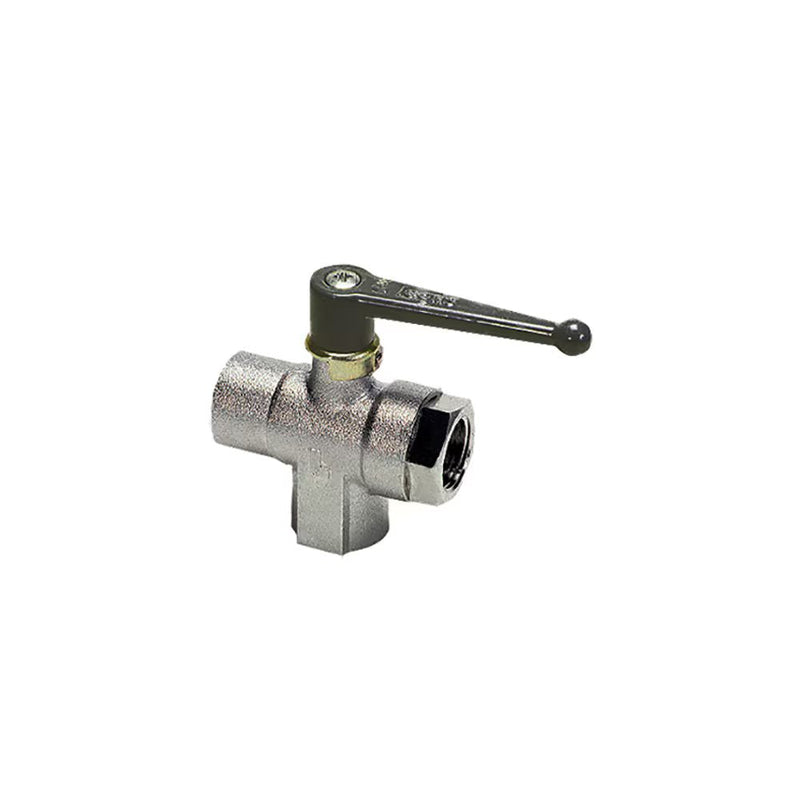

0483 04 10 by Parker | Legris In-Line Ported Ball Valve w/o close Position | 1/8" Female BSPP Thread | 14 mm Hex | Tee | Nickel-Plated Brass | Pack of 2

Save $54.31

$135.78

$135.78 - $135.78

$135.78

$81.47

$81.47 - $81.47

$81.47

by Parker Hannifin
Universal Series:0483 3/3 Right-Angle Ported Ball Valve Without Closed Position, Female BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 0483 04 10 Parker \| 2 \|
Series:	0483 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	H2	J	L	L1	M	Kg
0483 04 10	4 mm	1/8"	8 mm	14 mm	35 mm	29 mm	18 mm	14 mm	44 mm	25 mm	48 mm	.102 Kg
0483 06 13	6 mm	1/4"	12 mm	19 mm	38 mm	31 mm	24 mm	22 mm	53 mm	28 mm	48 mm	.196 Kg
0483 09 17	9 mm	3/8"	12 mm	24 mm	45 mm	43 mm	27 mm	25 mm	59 mm	31 mm	69 mm	.278 Kg
0483 12 21	12 mm	1/2"	15 mm	27 mm	47 mm	44 mm	33 mm	29 mm	67 mm	34 mm	69 mm	.340 Kg
0483 18 27	18 mm	3/4"	16.5 mm	38 mm	59 mm	51 mm	40 mm	39 mm	80 mm	39 mm	108 mm	.716 Kg
0483 23 34	23 mm	1"	19 mm	46 mm	63 mm	55 mm	47 mm	48 mm	94 mm	47 mm	108 mm	1.066 Kg

Maximum working pressure: 20 bar
