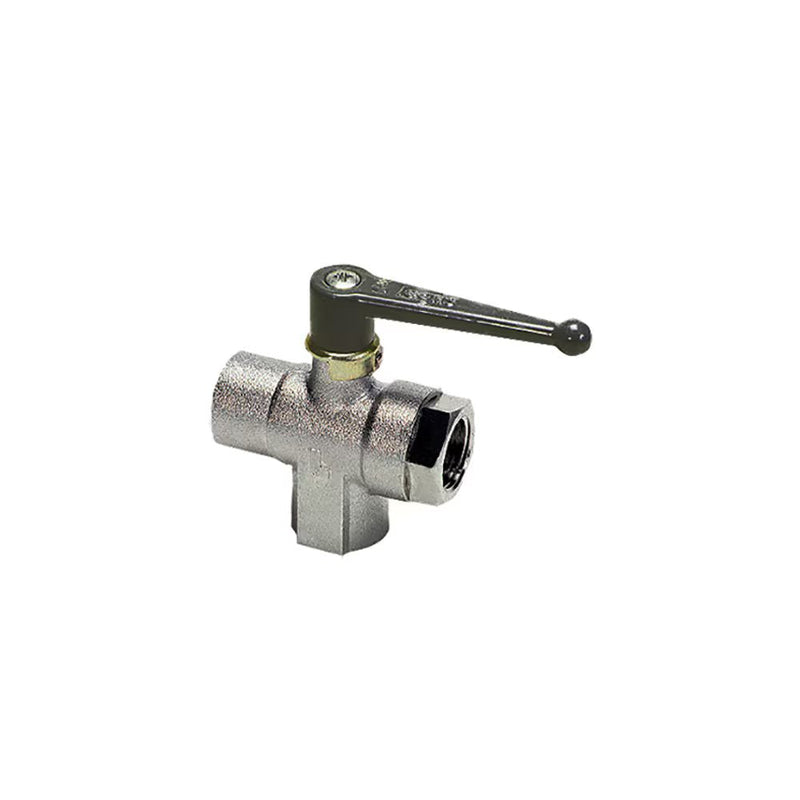

0483 18 27 by Parker | Legris In-Line Ported Ball Valve w/o close Position | 3/4" Female BSPP Thread | 38 mm Hex | Tee | Nickel-Plated Brass

0483 18 27 by Parker | Legris In-Line Ported Ball Valve w/o close Position | 3/4" Female BSPP Thread | 38 mm Hex | Tee | Nickel-Plated Brass

Save $67.83 Save $67.83
$169.58
$169.58 - $169.58
$169.58
$101.75
$101.75 - $101.75
$101.75

by Parker Hannifin
Universal Series:0483 3/3 Right-Angle Ported Ball Valve Without Closed Position, Female BSPP Thread
Specifications for Variant SKU: 0483 18 27 Parker
Series: 0483 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E F H H1 H2 J L L1 M Kg
0483 04 10 4 mm 1/8" 8 mm 14 mm 35 mm 29 mm 18 mm 14 mm 44 mm 25 mm 48 mm .102 Kg
0483 06 13 6 mm 1/4" 12 mm 19 mm 38 mm 31 mm 24 mm 22 mm 53 mm 28 mm 48 mm .196 Kg
0483 09 17 9 mm 3/8" 12 mm 24 mm 45 mm 43 mm 27 mm 25 mm 59 mm 31 mm 69 mm .278 Kg
0483 12 21 12 mm 1/2" 15 mm 27 mm 47 mm 44 mm 33 mm 29 mm 67 mm 34 mm 69 mm .340 Kg
0483 18 27 18 mm 3/4" 16.5 mm 38 mm 59 mm 51 mm 40 mm 39 mm 80 mm 39 mm 108 mm .716 Kg
0483 23 34 23 mm 1" 19 mm 46 mm 63 mm 55 mm 47 mm 48 mm 94 mm 47 mm 108 mm 1.066 Kg

Maximum working pressure: 20 bar
