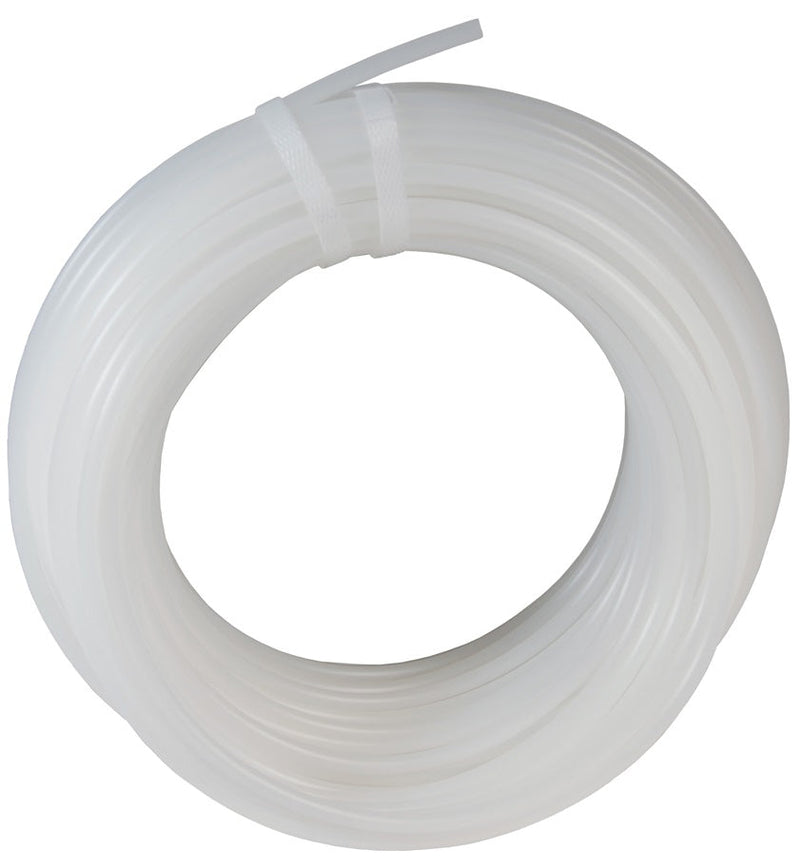

05106 by Dixon Valve | Nylon Tubing | 5/32" OD | 0.106" ID | 0.025" Wall Thickness | 100ft Length

05106 by Dixon Valve | Nylon Tubing | 5/32" OD | 0.106" ID | 0.025" Wall Thickness | 100ft Length

Save $2.89 Save $2.89
$26.02
$26.02 - $26.02
$26.02
$23.13
$23.13 - $23.13
$23.13

Dixon Valve
Nylon Tubing

For use with the push-in fittings.


Package Quantity: 100 Feet

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 05106 Dixon
Internal Diameter: 0.106in
Outer Diameter: 0.15625in
Tubing Construction: Nylon
Features:
  • Naturally transparent.
  • UV stabilized.
  • Glossy finish.
  • Recommended for applications requiring low density, lightweight toughness, flexibility, and chemical resistance.
  • Packaged in plastic bags.
Specifications:
  • Temperature range: -40°F to 180°F (-40°C to 82°C).
Nylon
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
04093 1/8" 0.093" 0.016" 270 PSI 100ft
05106 5/32" 0.106" 0.025" 350 PSI 100ft
06138 3/16" 0.138" 0.025" 260 PSI 100ft
08170 1/4" 0.170" 0.040" 330 PSI 100ft
08180 1/4" 0.180" 0.035" 290 PSI 100ft
12275 3/8" 0.275" 0.050" 250 PSI 100ft
16375 1/2" 0.375" 0.062" 240 PSI 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
