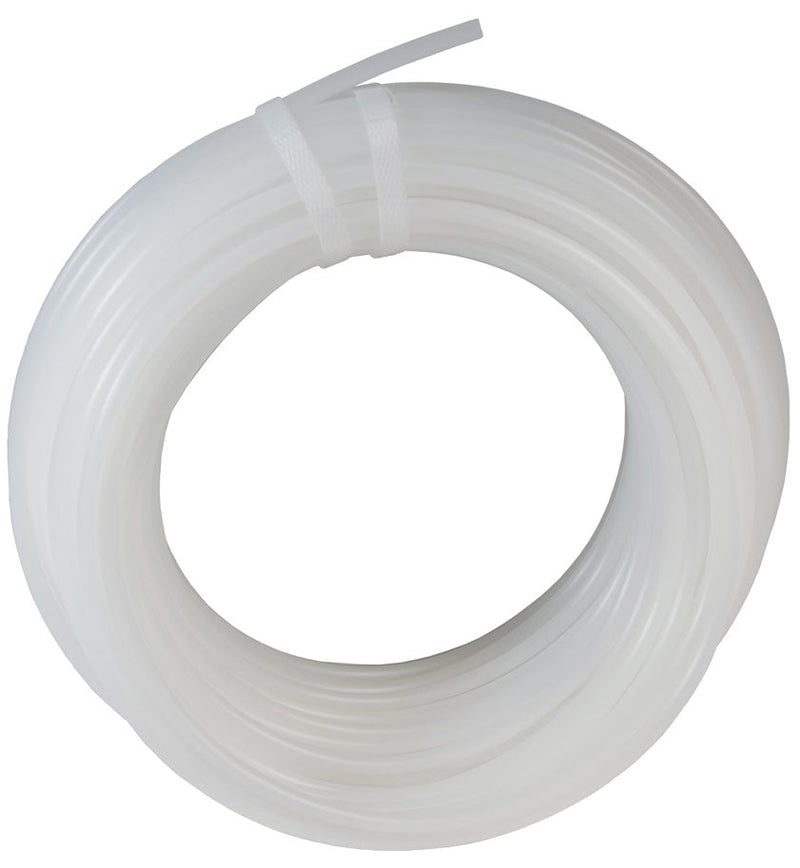

16375 by Dixon Valve | Nylon Tubing | 1/2" OD | 0.375" ID | 0.062" Wall Thickness | 100ft Length

16375 by Dixon Valve | Nylon Tubing | 1/2" OD | 0.375" ID | 0.062" Wall Thickness | 100ft Length

Save $21.84 Save $21.84
$196.56
$196.56 - $196.56
$196.56
$174.72
$174.72 - $174.72
$174.72

Dixon Valve
Nylon Tubing

For use with the push-in fittings.
Specifications for Variant SKU: 16375 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.50in
Tubing Construction: Nylon
Features:
  • Naturally transparent.
  • UV stabilized.
  • Glossy finish.
  • Recommended for applications requiring low density, lightweight toughness, flexibility, and chemical resistance.
  • Packaged in plastic bags.
Specifications:
  • Temperature range: -40°F to 180°F (-40°C to 82°C).
Nylon
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
04093 1/8" 0.093" 0.016" 270 PSI 100ft
05106 5/32" 0.106" 0.025" 350 PSI 100ft
06138 3/16" 0.138" 0.025" 260 PSI 100ft
08170 1/4" 0.170" 0.040" 330 PSI 100ft
08180 1/4" 0.180" 0.035" 290 PSI 100ft
12275 3/8" 0.275" 0.050" 250 PSI 100ft
16375 1/2" 0.375" 0.062" 240 PSI 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
