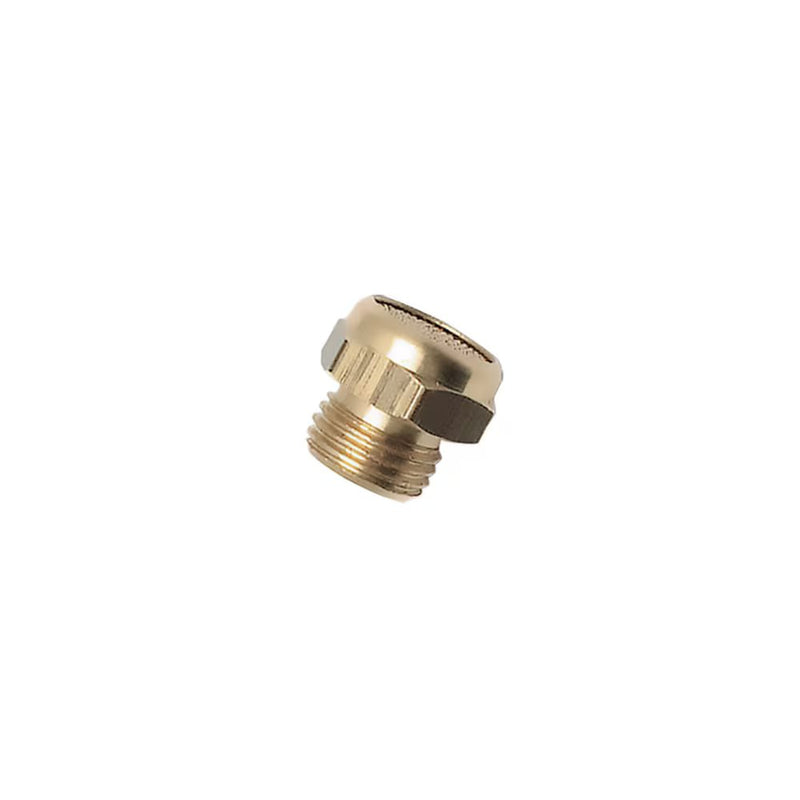

0673 00 10 by Parker | Legris Compact Silencer | G1/8" Male BSPP Thread | 12 mm Length | Nickel-Plated Brass

0673 00 10 by Parker | Legris Compact Silencer | G1/8" Male BSPP Thread | 12 mm Length | Nickel-Plated Brass | Pack of 10

Save $0.41 Save $0.41
$26.94
$26.94 - $26.94
$26.94
$26.53
$26.53 - $26.53
$26.53

by Parker Hannifin
Silencers:0673 Compact Silencer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0673 00 10 Parker | 10 |
Series: 0673 Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number C E F H Wt (Oz)
0673 00 10 G1/8" 4 mm 13 mm 12 mm .006 oz
0673 00 13 G1/4" 6 mm 16 mm 16 mm .012 oz
0673 00 17 G3/8" 8 mm 19 mm 17 mm .022 oz
0673 00 19 M5X0.8 8 mm 8 mm 8.5 mm .001 oz
0673 00 21 G1/2" 9 mm 24 mm 18 mm .037 oz
