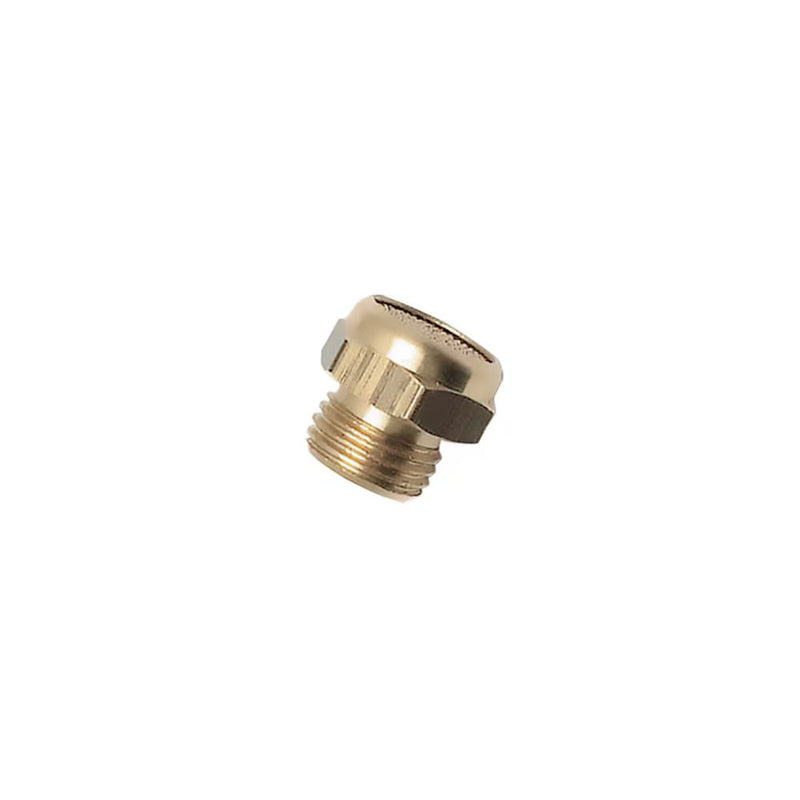

0673 00 17 by Parker | Legris Compact Silencer | G3/8" Male BSPP Thread | 17 mm Length | Nickel-Plated Brass | Pack of 10

Save $1.11

$63.24

$63.24 - $63.24

$63.24

$62.13

$62.13 - $62.13

$62.13

by Parker Hannifin
Silencers:0673 Compact Silencer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0673 00 17 Parker \| 10 \|
Series:	0673 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Brass
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	C	E	F	H	Wt (Oz)
0673 00 10	G1/8"	4 mm	13 mm	12 mm	.006 oz
0673 00 13	G1/4"	6 mm	16 mm	16 mm	.012 oz
0673 00 17	G3/8"	8 mm	19 mm	17 mm	.022 oz
0673 00 19	M5X0.8	8 mm	8 mm	8.5 mm	.001 oz
0673 00 21	G1/2"	9 mm	24 mm	18 mm	.037 oz
