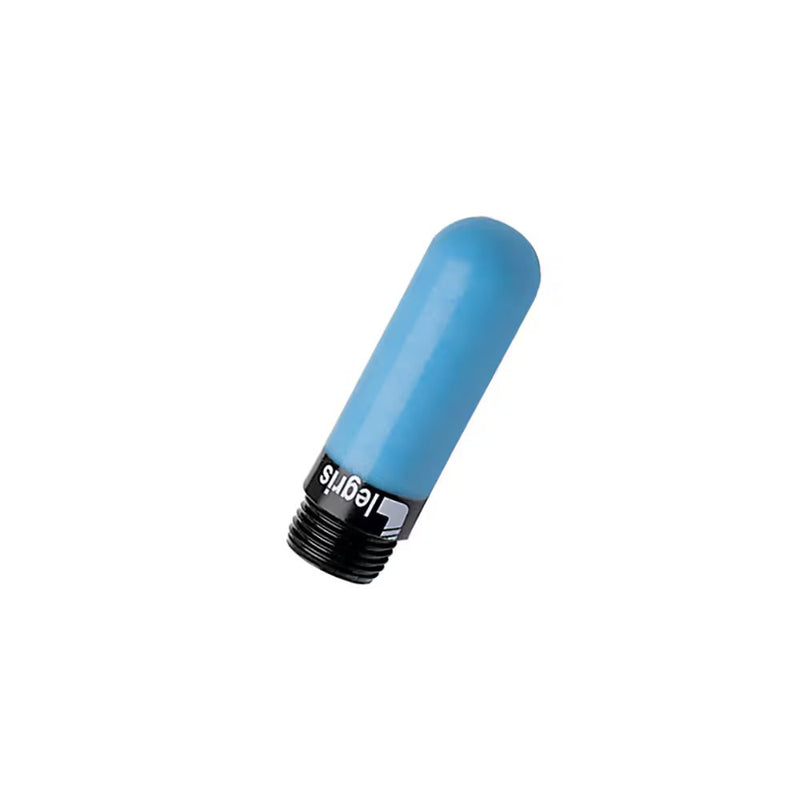

0674 00 17 by Parker | Legris Threaded Silencer | G3/8" Male BSPP Thread | 67.5 mm Length | Polyethylene | Pack of 5

Save $20.40

$51.00

$51.00 - $51.00

$51.00

$30.60

$30.60 - $30.60

$30.60

by Parker Hannifin
Silencers:0674 Polymer Silencer, Male BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0674 00 17 Parker \| 5 \|
Series:	0674 Series
Shape (Orientation):	No Orientation
Material(s):	Polyethylene, Plastic
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	NPT (C)	E	G	L	Wt (Oz)
0611 00 11	1/8"	.24"	.49"	1.34"	.07 oz
0611 00 14	1/4"	.28"	.61"	1.67"	.11 oz
0611 00 22	1/2"	.43"	.93"	3.07"	.35 oz


Part Number	BSPP (C)	E	G	L	Wt (Kg)
0674 00 19	M5X0.8	4 mm	6.5 mm	23 mm	.001 Kg
0674 00 10	G1/8"	6 mm	12.5 mm	34 mm	.002 Kg
0674 00 13	G1/4"	7 mm	15.5 mm	42.5 mm	.003 Kg
0674 00 17	G3/8"	11.5 mm	181.5 mm	67.5 mm	.006 Kg
0674 00 21	G1/2"	11 mm	23.5 mm	78 mm	.010 Kg
0674 00 27	G3/4"	15.5 mm	38.5 mm	131 mm	.040 Kg
0674 00 34	G1"	19.5 mm	49 mm	160 mm	.050 Kg
