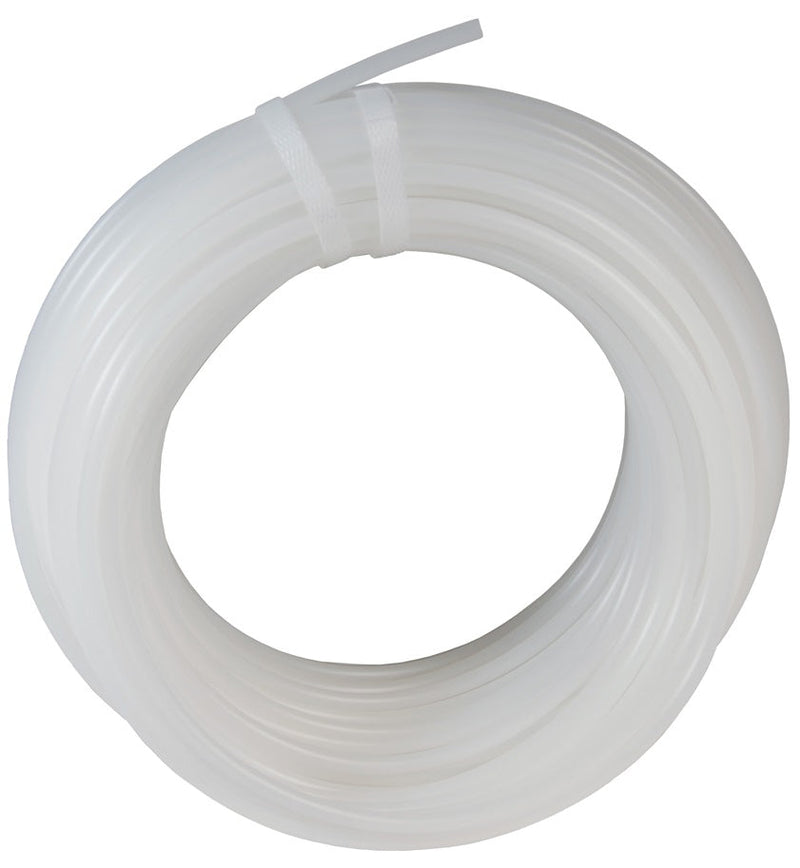

08170 by Dixon Valve | Nylon Tubing | 1/4" OD | 0.170" ID | 0.040" Wall Thickness | 100ft Length

Save $7.12

$64.11

$64.11 - $64.11

$64.11

$56.99

$56.99 - $56.99

$56.99

Dixon Valve
Nylon Tubing

For use with the push-in fittings.

Package Quantity: 100 Feet

Quantity

Specifications for Variant SKU: 08170 Dixon
Internal Diameter:	0.170in
Outer Diameter:	0.25in
Tubing Construction:	Nylon

Features:
Naturally transparent. UV stabilized. Glossy finish. Recommended for applications requiring low density, lightweight toughness, flexibility, and chemical resistance. Packaged in plastic bags.
Specifications:
Temperature range: -40°F to 180°F (-40°C to 82°C).

Nylon Part Number	Size		Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
Nylon Part Number	O.D.	I.D.	Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
04093	1/8"	0.093"	0.016"	270 PSI	100ft
05106	5/32"	0.106"	0.025"	350 PSI	100ft
06138	3/16"	0.138"	0.025"	260 PSI	100ft
08170	1/4"	0.170"	0.040"	330 PSI	100ft
08180	1/4"	0.180"	0.035"	290 PSI	100ft
12275	3/8"	0.275"	0.050"	250 PSI	100ft
16375	1/2"	0.375"	0.062"	240 PSI	100ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
