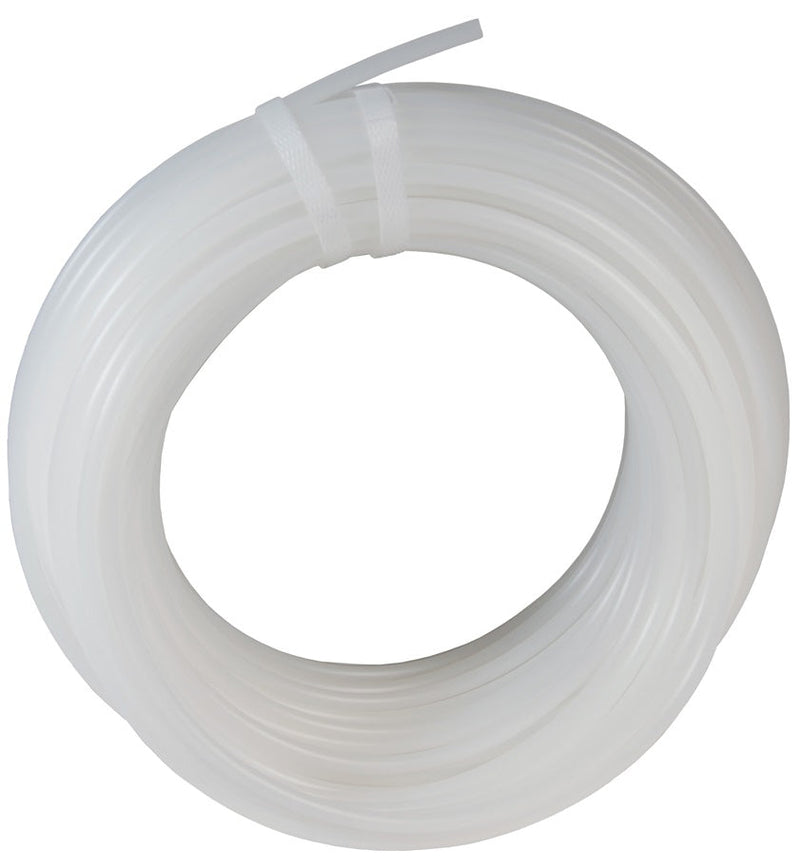

08180 by Dixon Valve | Nylon Tubing | 1/4" OD | 0.180" ID | 0.035" Wall Thickness | 100ft Length

08180 by Dixon Valve | Nylon Tubing | 1/4" OD | 0.180" ID | 0.035" Wall Thickness | 100ft Length

Save $6.79 Save $6.79
$61.11
$61.11 - $61.11
$61.11
$54.32
$54.32 - $54.32
$54.32

Dixon Valve
Nylon Tubing

For use with the push-in fittings.


Package Quantity: 100 Feet

Specifications for Variant SKU: 08180 Dixon
Internal Diameter: 0.180in
Outer Diameter: 0.25in
Tubing Construction: Nylon
Features:
  • Naturally transparent.
  • UV stabilized.
  • Glossy finish.
  • Recommended for applications requiring low density, lightweight toughness, flexibility, and chemical resistance.
  • Packaged in plastic bags.
Specifications:
  • Temperature range: -40°F to 180°F (-40°C to 82°C).
Nylon
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
04093 1/8" 0.093" 0.016" 270 PSI 100ft
05106 5/32" 0.106" 0.025" 350 PSI 100ft
06138 3/16" 0.138" 0.025" 260 PSI 100ft
08170 1/4" 0.170" 0.040" 330 PSI 100ft
08180 1/4" 0.180" 0.035" 290 PSI 100ft
12275 3/8" 0.275" 0.050" 250 PSI 100ft
16375 1/2" 0.375" 0.062" 240 PSI 100ft
