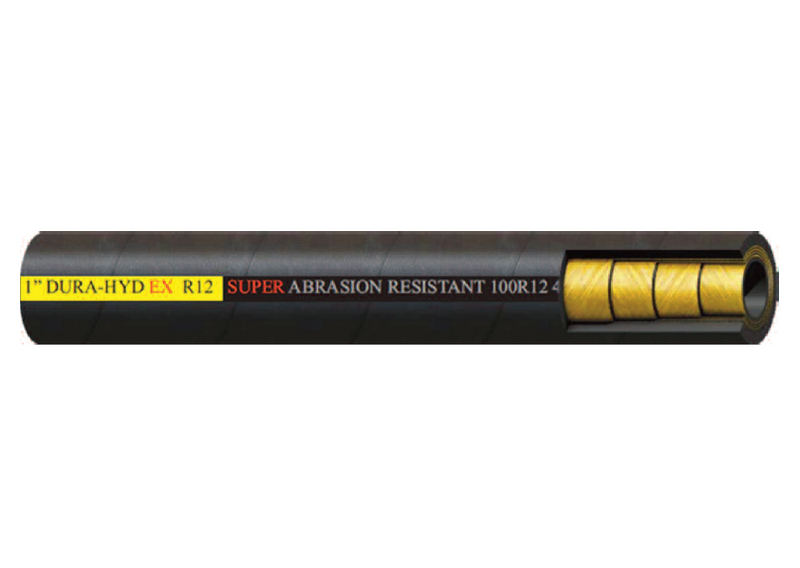

1-1/2" DHEXR12 Couplamatic DURA HYD EX Super Abrasion Resistant Four Spiral High Pressure Hydraulic Hose (SAE 100R12) - 1-1/2" ID - Bulk

1-1/2" DHEXR12 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Four Spiral High Pressure Hydraulic Hose | SAE 100R12 | 1-1/2" ID | 50ft Bulk Length

Save $587.11

$1,467.78

$1,467.78 - $1,467.78

$1,467.78

$880.67

$880.67 - $880.67

$880.67

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - DHEXR12 DURA HYD EX Super Abrasion Resistant Four Spiral Import High Pressure Hydraulic Hose - (SAE 100R12)

Specifications for Variant SKU: 1-1/2" DHEXR12 Couplamatic \| 50 \|
Series:	DHEXR12 Series
Hose Color(s):	Black
Dash Size:	-24
Internal Diameter:	1.50in
Outer Diameter:	2.106in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R12
Compatible with the following Series:	GW Series \| 4GC Series

SAE 100R12 — Four Spiral, Super Abrasion Resistant

Dura-Hyd EX Four Spiral High Pressure Hydraulic Hose

Four-spiral SAE 100R12 hose with a flame resistant bi-layer cover engineered for severe external abrasion — for high pressure circuits on equipment that drags and rubs.

1

What is this hose used for?

High Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R12

Cover

Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA

Reinforcement

4 High Tensile Steel Spirals

Temperature

-40°F to +250°F (-40°C to +121°C)

3

What are the main product features?

Bi-layer SUPER abrasion resistant cover — many times the cover life of a standard R12.
Four high tensile steel spirals — full SAE 100R12 pressure and impulse capability.
Flame resistant, MSHA — approved for mining service.
+250°F service temperature — suited to hot hydraulic systems.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/2" DHEXR12	1/2"	0.937"	4,000 lbs.	16,000 lbs.	3.5"	56 lbs.	Bulk
3/4" DHEXR12	3/4"	1.208"	4,000 lbs.	16,000 lbs.	4.8"	95 lbs.	Bulk
1" DHEXR12	1"	1.496"	4,000 lbs.	16,000 lbs.	6"	131 lbs.	Bulk
1-1/4" DHEXR12	1-1/4"	1.850"	3,000 lbs.	12,000 lbs.	16.5"	194 lbs.	Bulk
1-1/2" DHEXR12	1-1/2"	2.106"	2,500 lbs.	10,000 lbs.	20"	229 lbs.	Bulk
2" DHEXR12	2"	2.626"	2,500 lbs.	10,000 lbs.	25"	317 lbs.	Bulk

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
