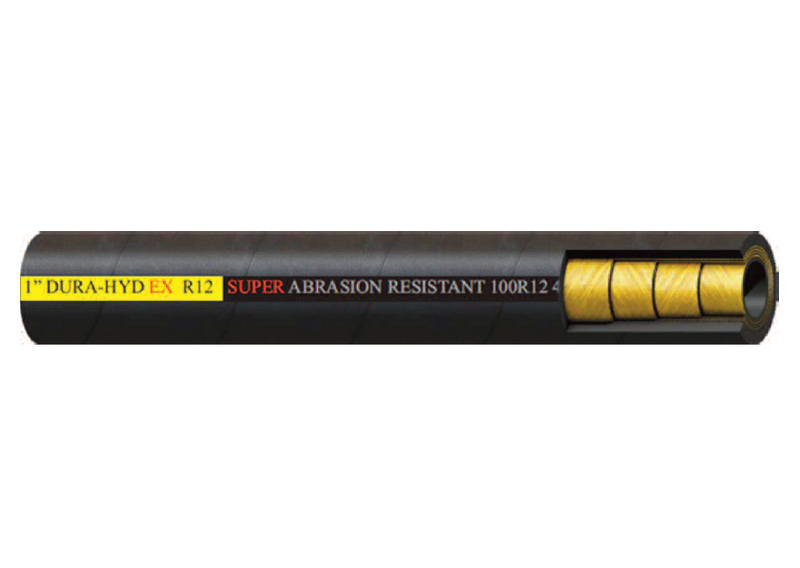

2" DHEXR12 Couplamatic DURA HYD EX Super Abrasion Resistant Four Spiral High Pressure Hydraulic Hose (SAE 100R12) - 2" ID - Bulk

2" DHEXR12 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Four Spiral High Pressure Hydraulic Hose | SAE 100R12 | 2" ID | 50ft Bulk Length

Save $819.33

$2,048.33

$2,048.33 - $2,048.33

$2,048.33

$1,229.00

$1,229.00 - $1,229.00

$1,229.00

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - DHEXR12 DURA HYD EX Super Abrasion Resistant Four Spiral Import High Pressure Hydraulic Hose - (SAE 100R12)

Specifications for Variant SKU: 2" DHEXR12 Couplamatic \| 50 \|
Series:	DHEXR12 Series
Hose Color(s):	Black
Dash Size:	-32
Internal Diameter:	2in
Outer Diameter:	2.626in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R12
Compatible with the following Series:	GW Series \| 4GC Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R12
Cover:	Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA	Reinforcement:	4 High Tensile Steel Spirals
Temperature:	-40F to +250F (-40C to +121C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/2" DHEXR12	1/2"	0.937"	4,000 lbs.	16,000 lbs.	3.5"	56 lbs.	Bulk
3/4" DHEXR12	3/4"	1.208"	4,000 lbs.	16,000 lbs.	4.8"	95 lbs.	Bulk
1" DHEXR12	1"	1.496"	4,000 lbs.	16,000 lbs.	6"	131 lbs.	Bulk
1-1/4" DHEXR12	1-1/4"	1.850"	3,000 lbs.	12,000 lbs.	16.5"	194 lbs.	Bulk
1-1/2" DHEXR12	1-1/2"	2.106"	2,500 lbs.	10,000 lbs.	20"	229 lbs.	Bulk
2" DHEXR12	2"	2.626"	2,500 lbs.	10,000 lbs.	25"	317 lbs.	Bulk
