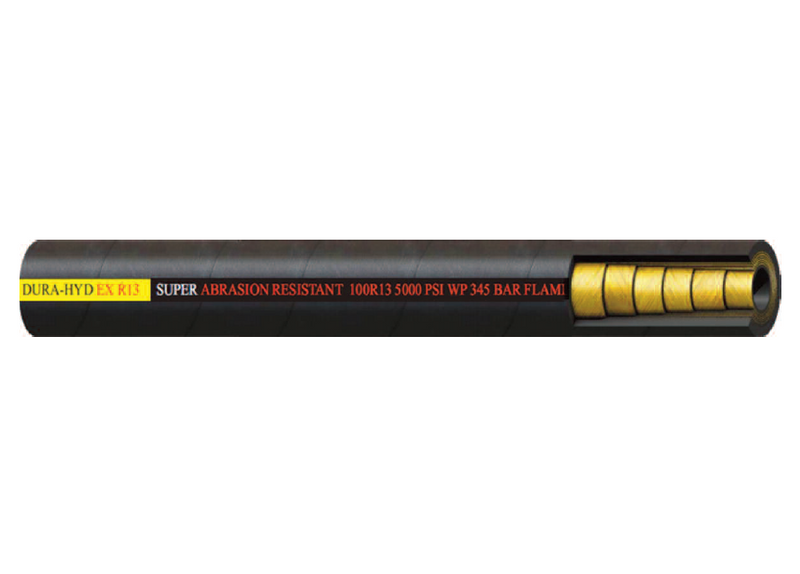

1-1/2" DHEXR13 Couplamatic DURA HYD EX Super Abrasion Resistant Multispiral Extra High Pressure Import Hydraulic Hose - 4 or 6 High Tensile Steel Spirals (SAE 100R13) - 1-1/2" ID - Bulk

1-1/2" DHEXR13 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Multispiral Extra High Pressure Import Hydraulic Hose | 4 or 6 High Tensile Steel Spirals | SAE 100R13 | 1-1/2" ID | 50ft Bulk Length

Save $1,066.45 Save $1,066.45
$2,666.12
$2,666.12 - $2,666.12
$2,666.12
$1,599.67
$1,599.67 - $1,599.67
$1,599.67

Couplamatic Systems Inc.
4 or 6 High Tensile Steel Spirals - DHEXR13 DURA HYD EX Super Abrasion Resistant Multispiral Extra High Pressure Import Hydraulic Hose - (SAE 100R13)
Specifications for Variant SKU: 1-1/2" DHEXR13 Couplamatic | 50 |
Series: DHEXR13 Series
Hose Color(s): Black
Dash Size: -24
Internal Diameter: 1.50in
Outer Diameter: 2.255in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R13
Compatible with the following Series: 6GC Series  |   SX Series
Applications: Very High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R13
Cover: Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA Reinforcement: 4 or 6 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
3/4" DHEXR13 3/4" 1.260" 5,000 lbs. 20,000 lbs. 9.5" 121 lbs. Bulk
1" DHEXR13 1" 1.515" 5,000 lbs. 20,000 lbs. 12" 153 lbs. Bulk
1-1/4" DHEXR13 1-1/4" 1.940" 5,000 lbs. 20,000 lbs. 16.5" 288 lbs. Bulk
1-1/2" DHEXR13 1-1/2" 2.255" 5,000 lbs. 20,000 lbs. 20" 361 lbs. Bulk
2" DHEXR13 2" 2.820" 5,000 lbs. 20,000 lbs. 25" 471 lbs. Bulk
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
