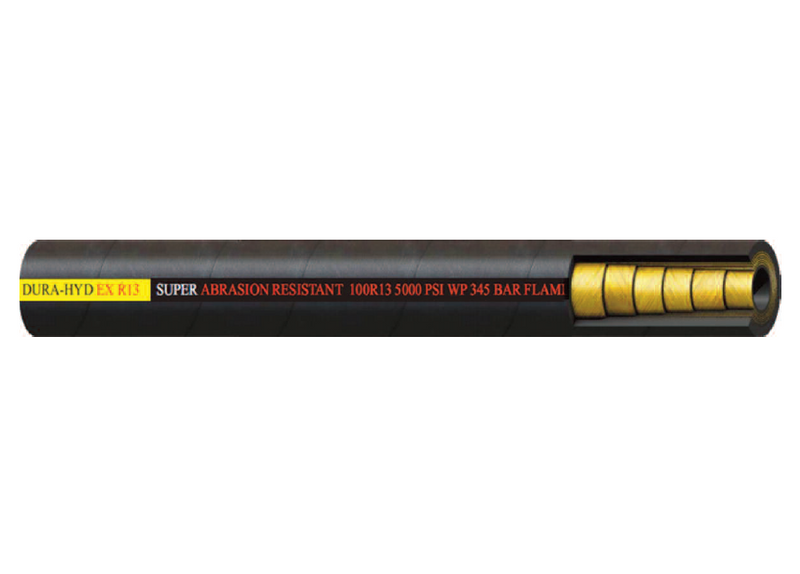

1" DHEXR13 Couplamatic DURA HYD EX Super Abrasion Resistant Multispiral Extra High Pressure Import Hydraulic Hose - 4 or 6 High Tensile Steel Spirals (SAE 100R13) - 1" ID - Bulk

1" DHEXR13 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Multispiral Extra High Pressure Import Hydraulic Hose | 4 or 6 High Tensile Steel Spirals | SAE 100R13 | 1" ID | 50ft Bulk Length

Save $488.67 Save $488.67
$1,221.67
$1,221.67 - $1,221.67
$1,221.67
$733.00
$733.00 - $733.00
$733.00

Couplamatic Systems Inc.
4 or 6 High Tensile Steel Spirals - DHEXR13 DURA HYD EX Super Abrasion Resistant Multispiral Extra High Pressure Import Hydraulic Hose - (SAE 100R13)
Specifications for Variant SKU: 1" DHEXR13 Couplamatic | 50 |
Series: DHEXR13 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.515in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R13
Compatible with the following Series: 6GC Series  |   SX Series
Applications: Very High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R13
Cover: Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA Reinforcement: 4 or 6 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
3/4" DHEXR13 3/4" 1.260" 5,000 lbs. 20,000 lbs. 9.5" 121 lbs. Bulk
1" DHEXR13 1" 1.515" 5,000 lbs. 20,000 lbs. 12" 153 lbs. Bulk
1-1/4" DHEXR13 1-1/4" 1.940" 5,000 lbs. 20,000 lbs. 16.5" 288 lbs. Bulk
1-1/2" DHEXR13 1-1/2" 2.255" 5,000 lbs. 20,000 lbs. 20" 361 lbs. Bulk
2" DHEXR13 2" 2.820" 5,000 lbs. 20,000 lbs. 25" 471 lbs. Bulk
