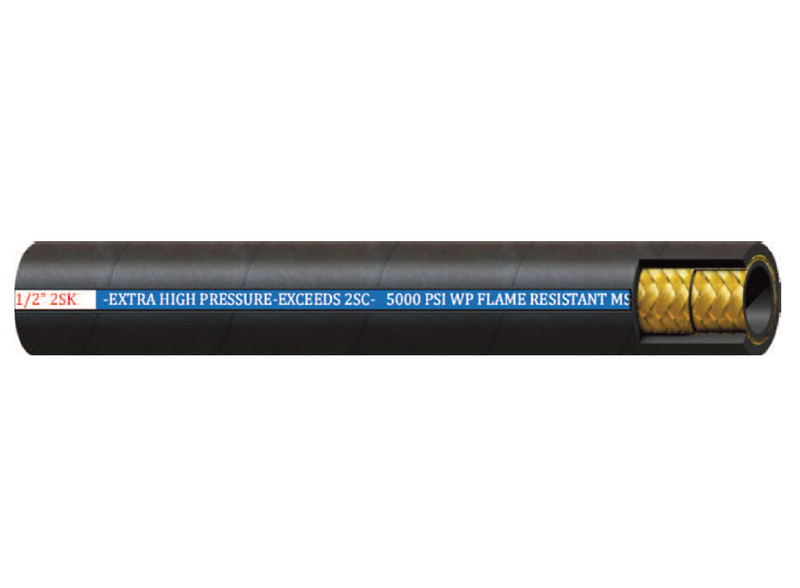

1-1/4" 2SK Couplamatic Import Thin Cover 2-Wire Extreme Pressure Hydraulic Hose (Exceeds 2SN/2SC) - 1-1/4" ID - Bulk

1-1/4" 2SK by Couplamatic | Import Thin Cover | 2-Wire Extreme Pressure Hydraulic Hose | Exceeds 2SN/2SC | 1-1/4" ID | 50ft Bulk Length

Save $355.38

$888.45

$888.45 - $888.45

$888.45

$533.07

$533.07 - $533.07

$533.07

Couplamatic Systems Inc.
Two Wire Braid Hoses - 2SN Import Thin Cover 2-Wire Hydraulic Hose - SAE 100R2AT/2SN

Specifications for Variant SKU: 1-1/4" 2SK Couplamatic \| 50 \|
Series:	2SK Series
Hose Color(s):	Black
Dash Size:	-20
Internal Diameter:	1.25in
Outer Diameter:	1.715in
Applicable Specs & Approvals:	Applicable MSHA Standards
Compatible with the following Series:	A Series \| Grip Crimp Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	Rating:	Exceeds 2SN/2SC
Cover:	Abrasion and Flame Resistant Cover, MSHA Approved	Reinforcement:	Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" 2SK	1/4"	0.520"	6,530 lbs.	26,120 lbs.	2.0"	24 lbs.	500ft
3/8" 2SK	3/8"	0.687"	5,585 lbs.	22,340 lbs.	3.0"	34 lbs.	400ft
1/2" 2SK	1/2"	0.810"	5,000 lbs.	20,000 lbs.	3.6"	43 lbs.	300ft
5/8" 2SK	5/8"	0.980"	4,625 lbs.	18,500 lbs.	4.0"	51 lbs.	250ft
3/4" 2SK	3/4"	1.155"	4,350 lbs.	17,400 lbs.	5.0"	61 lbs.	250ft
1" 2SK	1"	1.410"	3,250 lbs.	13,000 lbs.	6.5"	94 lbs.	200ft
1-1/4" 2SK	1-1/4"	1.715"	2,500 lbs.	10,000 lbs.	12.0"	130 lbs.	Bulk
